FMHR0209-18
ActiveFairview Microwave
CBL ASSY TNCPLUG-TYPE NPLUG 18
FMHR0209-18
ActiveFairview Microwave
CBL ASSY TNCPLUG-TYPE NPLUG 18
Description
General part information
FMHR0209-18

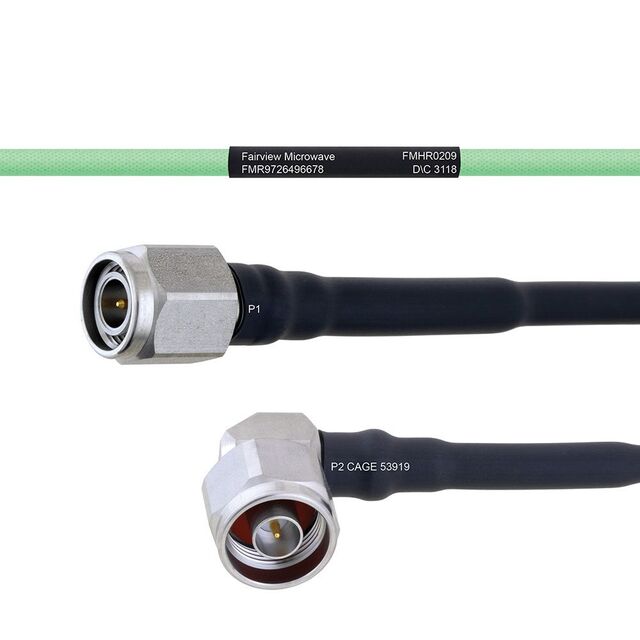

Cable Assembly Coaxial N-Type to TNC LL160 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0209-18 |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LL160 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 18 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
