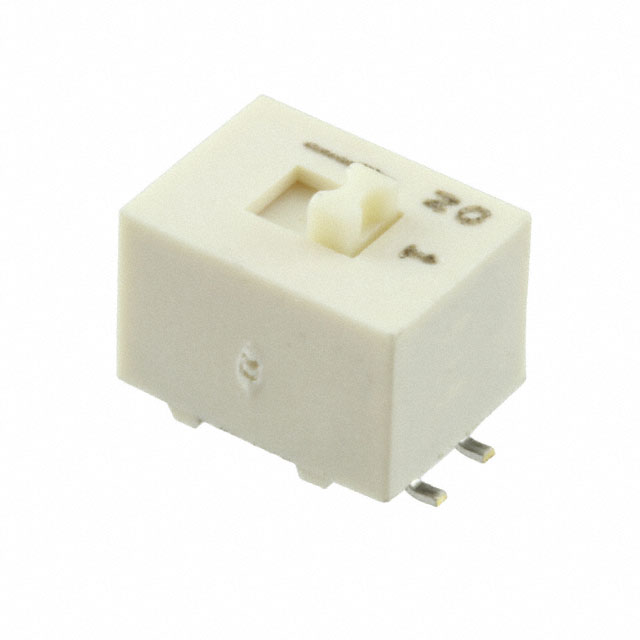

78HF01GWRT

Active

Grayhill Inc.

SWITCH SLIDE DIP DPST 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP DPST 0.15A 30V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SLIDE DIP DPST 0.15A 30V

Part	Circuit	Body Material	Termination Style	Contact Finish	Contact Material	Electrical Life	Actuator Level	Length	Length	Number of Positions	Washable	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Actuator Type	Height Above Board	Height Above Board	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
Grayhill Inc. 78HF01GWRT	DPST	Thermoplastic	Gull Wing	Gold	Copper Alloy	2000 Steps	Raised	7.11 mm	0.28 "	1		2000 Cycles	0.1 in	Full	2.54 mm	Surface Mount	Slide (Standard)	8.3 mm	0.327 in	30 VDC	85 °C	-40 °C
Grayhill Inc. 78HF01GWT	DPST	Thermoplastic	Gull Wing	Gold	Copper Alloy	2000 Steps	Raised	7.11 mm	0.28 "	1		2000 Cycles	0.1 in	Full	2.54 mm	Surface Mount	Slide (Standard)	8.3 mm	0.327 in	30 VDC	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch DPST 1 Position Surface Mount Slide (Standard) Actuator 150mA 30VDC
