9457MN 0041000

Active

Belden Inc.

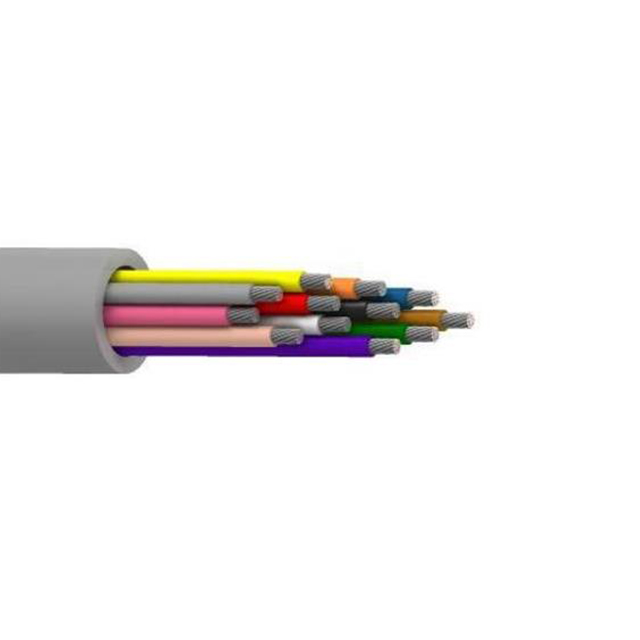

CABLE 12COND 20AWG YELLOW

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 20AWG YELLOW

Technical Specifications

Parameters and characteristics for this part

Specification	9457MN 0041000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	6.83 mm
Jacket (Insulation) Diameter [diameter]	0.269 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Yellow
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Length	Length	Number of Conductors	Ratings	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Wire Gauge	Conductor Strand
Belden Inc. 9457MN 0041000	1000 ft	304.8 m	12	UL Style 2937	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Yellow	Copper Tinned	6.83 mm	0.269 in	Audio Control Instrumentation	0.406 mm	0.016 in	300 V	Multi-Conductor	20 AWG	26 34 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Conductor Multi-Conductor Cable Yellow 20 AWG 1000.0' (304.8m)
