FMC1919316-72
ActiveFairview Microwave
CBL ASSY MMCXPLUG-MMCXPLUG 72
FMC1919316-72
ActiveFairview Microwave
CBL ASSY MMCXPLUG-MMCXPLUG 72
Description
General part information
FMC1919316-72

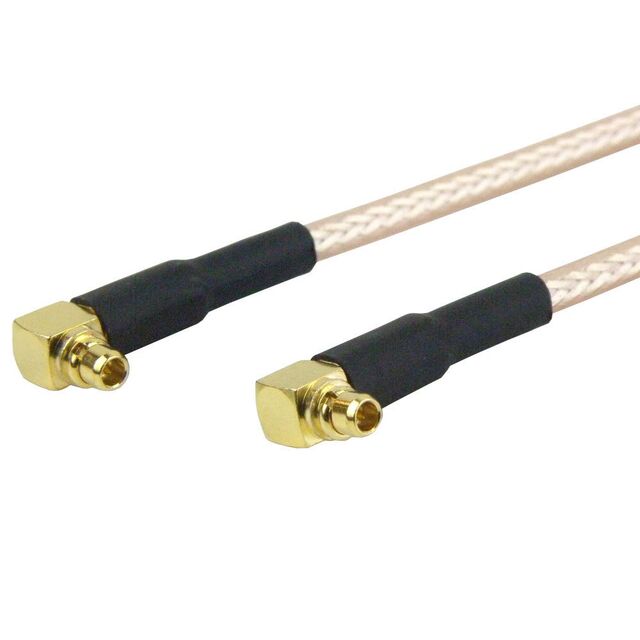

Cable Assembly Coaxial MMCX to MMCX RG-316 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC1919316-72 |
|---|---|
| 1st Connector | MMCX Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Length | 72 in |
| Overall Impedance | 50 Ohms |
| Style | MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
