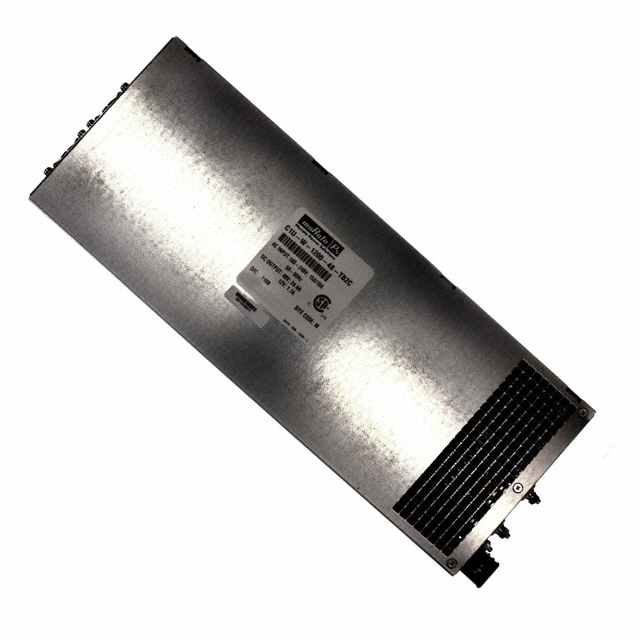

C1U-W-1200-48-TB2C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 48V 1200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1U-W-1200-48-TB2C
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 48V 1200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | C1U-W-1200-48-TB2C | C1U-W Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | cCSAus, TUV | cCSAus, TUV |
| Current - Output 1 | 24.6 A | 24.6 - 98.3 A |
| Efficiency | 91 % | 90.6 - 91 % |
| Features | Standby Output, Remote Sense, Load Sharing, Remote On/Off, Universal Input | Load Sharing, PFC, Standby Output, Remote Sense, Universal Input, Remote On/Off |
| Minimum Load Required | True | True |
| Mounting Type | Rack Mount | Rack Mount |
| Number of Outputs | 1 | 1 |
| Power (Watts) | 1200 W | 1200 W |
| Size / Dimension [x] | 360.7 mm | 360.7 mm |
| Size / Dimension [x] | 14.2 in | 14.2 in |
| Size / Dimension [y] | 5.5 in | 5.5 in |
| Size / Dimension [y] | 139.7 mm | 139.7 mm |
| Size / Dimension [z] | 1.67 in | 1.67 in |
| Size / Dimension [z] | 42.4 mm | 42.4 mm |
| Type | Front End | Front End |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 48 V | 12 - 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
C1U-W Series
AC/DC CONVERTER 12V 1200W
| Part | Voltage - Output 1 | Features | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Applications | Power (Watts) | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Number of Outputs | Efficiency | Current - Output 1 | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. C1U-W-1200-12-TC1C | 12 V | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Front End | 5.5 in | 139.7 mm | 1.67 in | 360.7 mm | 42.4 mm | 14.2 in | cCSAus, TUV | ITE (Commercial) | 1200 W | Rack Mount | 90 VAC | 264 VAC | 3000 V | 1 | 90.6 % | 98.3 A | |
Murata Power Solutions Inc. C1U-W-1200-48-TB2C | 48 V | Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Front End | 5.5 in | 139.7 mm | 1.67 in | 360.7 mm | 42.4 mm | 14.2 in | cCSAus, TUV | ITE (Commercial) | 1200 W | Rack Mount | 90 VAC | 264 VAC | 3000 V | 1 | 91 % | 24.6 A | |
Murata Power Solutions Inc. C1U-W-1200-12-TC2C | 12 V | Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Front End | 5.5 in | 139.7 mm | 1.67 in | 360.7 mm | 42.4 mm | 14.2 in | cCSAus, TUV | ITE (Commercial) | 1200 W | Rack Mount | 90 VAC | 264 VAC | 3000 V | 1 | 90.6 % | 98.3 A |
Description
General part information
C1U-W Series
Front End AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
