M4-38RX-BOTTLE
Active3M

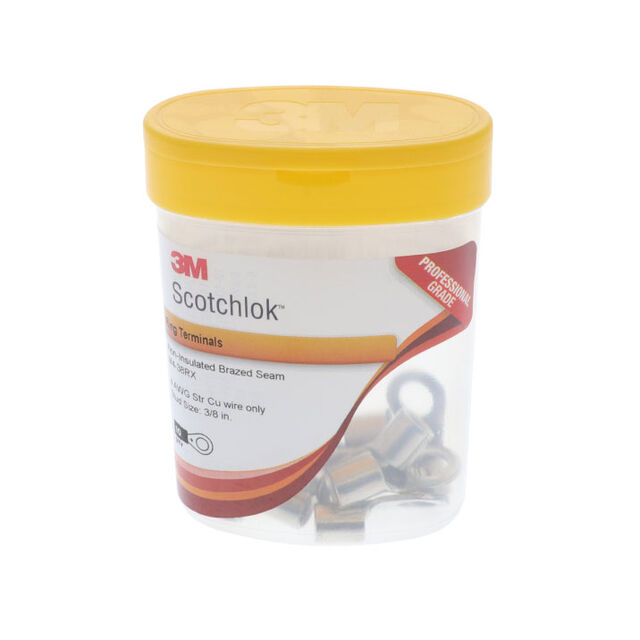

CONN RING CIRC 4AWG #3/8 10PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M4-38RX-BOTTLE
Active3M
CONN RING CIRC 4AWG #3/8 10PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M4-38RX-BOTTLE | M4 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper |
| Features | Brazed Seam | Brazed Seam |
| Insulation | Non-Insulated | Non-Insulated |
| Length - Overall [x] | 34.04 mm | 34.04 mm |
| Length - Overall [x] | 1.34 in | 1.34 in |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 3/8 Stud | 3/8 Stud |
| Stud/Tab Size | - | 0.25 - 10 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Thickness | 1.91 mm | 1.91 mm |
| Thickness | 0.075 in | 0.075 in |
| Width - Outer Edges [x] | 0.68 in | 0.68 in |
| Width - Outer Edges [x] | 17.27 mm | 17.27 mm |
| Wire Gauge | 4 AWG | 4 AWG |
M4 Series
CONN RING CIRC 4AWG #1/4 10PC
| Part | Mounting Type | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Type | Stud/Tab Size | Thickness | Thickness | Features | Wire Gauge | Contact Material | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Finish | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | 34.04 mm | 1.34 in | Crimp | Circular | 0.25 Stud | 1.91 mm | 0.075 in | Brazed Seam | 4 AWG | Copper, ETP | Non-Insulated | 0.68 in | 17.27 mm | Tin | ||
Free Hanging (In-Line) | 34.04 mm | 1.34 in | Crimp | Circular | 10 Stud | 1.91 mm | 0.075 in | Brazed Seam | 4 AWG | Copper, ETP | Non-Insulated | 0.68 in | 17.27 mm | Tin | ||
3M M4-38RK | Free Hanging (In-Line) | 34.04 mm | 1.34 in | Crimp | Circular | 1.91 mm | 0.075 in | Brazed Seam | 4 AWG | Non-Insulated | 0.68 in | 17.27 mm | 3/8 Stud | |||
Free Hanging (In-Line) | 34.04 mm | 1.34 in | Crimp | Circular | 0.3125 Stud | 1.91 mm | 0.075 in | Brazed Seam | 4 AWG | Copper, ETP | Non-Insulated | 0.68 in | 17.27 mm | Tin | ||
Free Hanging (In-Line) | 34.04 mm | 1.34 in | Crimp | Circular | 1.91 mm | 0.075 in | Brazed Seam | 4 AWG | Copper, ETP | Non-Insulated | 0.68 in | 17.27 mm | Tin | 3/8 Stud | ||
3M M4-516RK | Free Hanging (In-Line) | 34.04 mm | 1.34 in | Crimp | Circular | 0.3125 Stud | 1.91 mm | 0.075 in | Brazed Seam | 4 AWG | Non-Insulated | 0.68 in | 17.27 mm | |||
3M M4-14RK | Free Hanging (In-Line) | 34.04 mm | 1.34 in | Crimp | Circular | 0.25 Stud | 1.91 mm | 0.075 in | Brazed Seam | 4 AWG | Non-Insulated | 0.68 in | 17.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.75 | |
| 10 | $ 37.44 | |||
| 25 | $ 35.82 | |||
| 50 | $ 34.66 | |||
| 100 | $ 33.51 | |||
| 250 | $ 31.66 | |||
Description
General part information
M4 Series
Ring Terminal Connector 3/8 Stud Circular 4 AWG Crimp
