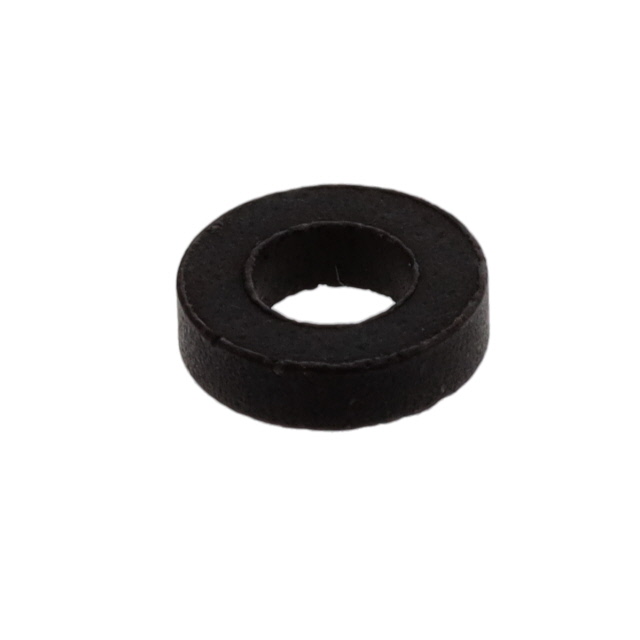

Specification	5943000111

Core Factor (ΣI/A) mm⁻¹	6.3677 mm⁻¹
Core Type	Toroid
Diameter	0.236 in
Effective Area (Ae)	2.04 mm²
Effective Length (le)	13 mm
Effective Magnetic Volume (Ve)	26.6 mm³
Finish	Parylene
Gap	Ungapped
Height	0.067 in
Inductance Factor (Al)	158 nH
Initial Permeability (µi)	800
Material	43
Tolerance	20 %
