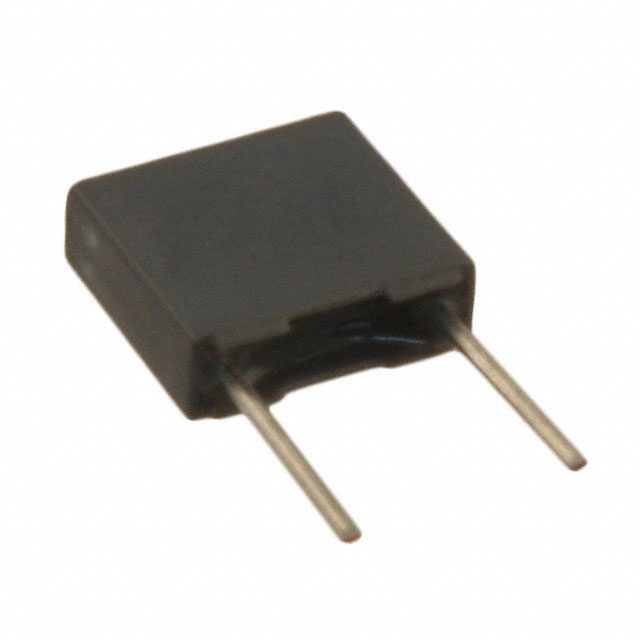

168154J50A-F
ActiveCornell Dubilier Knowles
CAP FILM 0.15UF 5% 50VDC RADIAL
168154J50A-F
ActiveCornell Dubilier Knowles
CAP FILM 0.15UF 5% 50VDC RADIAL
Description
General part information
168154J50A-F
0.15 µF Film Capacitor 30V 50V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 168154J50A-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.15 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.256 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.098 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 30 V |
| Voltage Rating - DC | 50 V |
