000-68175-11RFX

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-68175-11RFX	000-68 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	RG-59 Plenum, 82108, 9104, Belden 1506	82259, 9259, 89259, Belden 1560A, RG-59 Plenum, 88241, 82108, 9104, Belden 1506
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	2 - 4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms

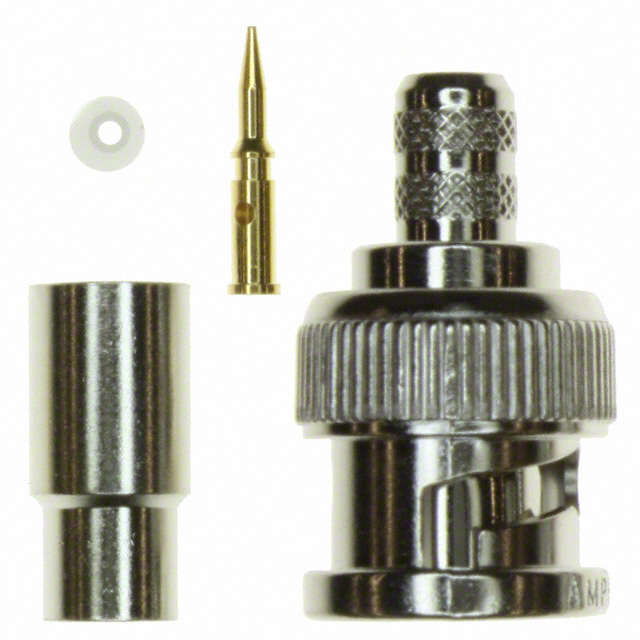

Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule	1 Ferrule, 1 Contact, 1 Connector, 1 Insulator
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN BNC PLUG STR 50 OHM CRIMP

Part	Includes	Center Contact Plating	Fastening Type	Insertion Loss	Frequency - Max [Max]	Impedance	Contact Termination	Center Contact Material	Mating Cycles	Body Finish	Housing Color	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Connector Style	Voltage Rating	Cable Group	Mounting Type	Body Material	Shield Termination
AMPHENOL RF 000-68175-1003	1 Connector, 1 Contact, 1 Ferrule	Gold	Bayonet Lock	0.2 dB	2 GHz	50 Ohms	Crimp, Solder	Brass	500	Nickel	Silver	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	-65 ░C	165 °C	1	BNC	500 V	82259, 88241, 89259, 9259, Belden 1560A, RG-59 Plenum	Free Hanging (In-Line)	Brass	Crimp
AMPHENOL RF 000-68175-11RFX	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator	Gold	Bayonet Lock	0.2 dB	4 GHz	50 Ohms	Crimp	Brass	500	Nickel	Silver	Polyoxymethylene (POM) Acetal	Male Pin, Plug	-40 °C	85 °C	1	BNC	500 V	82108, 9104, Belden 1506, RG-59 Plenum	Free Hanging (In-Line)	Brass	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
