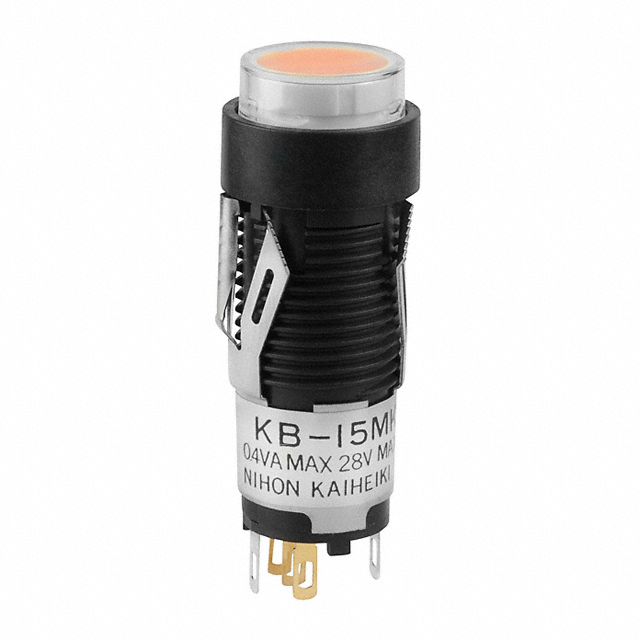

KB15MKG01-5D05-JD
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | KB15MKG01-5D05-JD |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color | Amber |
| Color - Actuator/Cap | Clear (Amber Filter/Diffuser) |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 100000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 5 V |
| Mechanical Life (Cycles) | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 12.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
