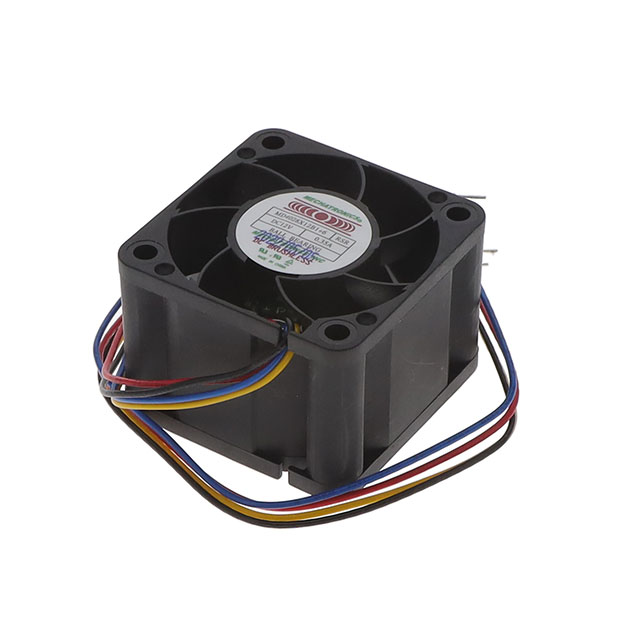

MD4028X12B1+6-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MD4028X12B1+6-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MD4028X12B1+6-RSR |
|---|---|
| Air Flow | 18.7 CFM |
| Air Flow | 0.524 mł/min |
| Approval Agency | cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.35 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control, Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| RPM | 11500 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 0.111 lb |
| Weight | 50.35 g |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.94 | |
Description
General part information
MD4028X12B1+6-RSR
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 18.7 CFM (0.524m³/min) 4 Wire Leads
Documents
Technical documentation and resources
