1-794664-8
ObsoleteTE Connectivity AMP Connectors

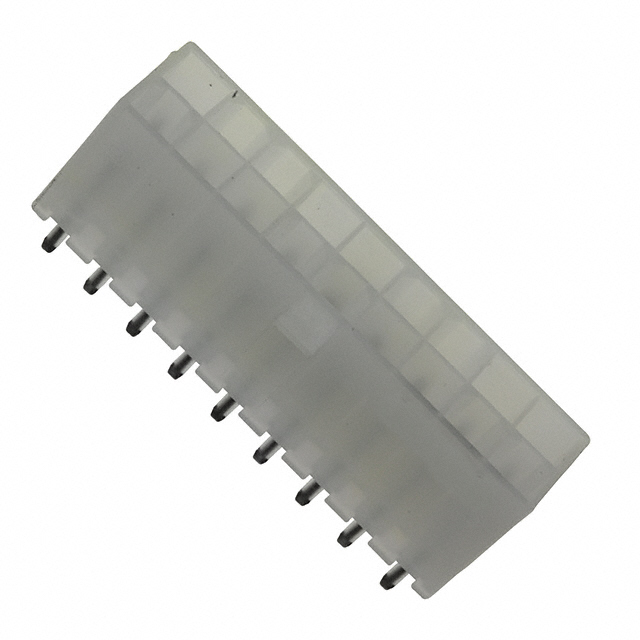

CONN HEADER VERT 18POS 4.2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-794664-8
ObsoleteTE Connectivity AMP Connectors
CONN HEADER VERT 18POS 4.2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794664-8 | 794664 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 118.1 µin | 118.1 µin |
| Contact Finish Thickness - Mating | 3 µm | 3 µm |
| Contact Length - Post | 3.5 mm | 3.5 mm |
| Contact Length - Post | 0.138 in | 0.138 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Natural | Natural |
| Insulation Height | 12.8 mm | 12.8 mm |
| Insulation Height | 0.504 in | 0.504 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 18 | 6 - 22 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 4.2 mm | 4.2 mm |
| Pitch - Mating | 0.165 in | 0.165 in |
| Row Spacing - Mating | 4.2 mm | 4.2 mm |
| Row Spacing - Mating | 0.165 in | 0.165 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
794664 Series
CONN HEADER VERT 14POS 4.2MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Style | Contact Type | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Shrouding | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Height | Insulation Height | Contact Finish - Mating | Voltage Rating | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Contact Material | Fastening Type | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Number of Rows | Contact Shape | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794664-4 | 105 ░C | -55 °C | Through Hole | Board to Board, Cable | Male Pin | Tin-Lead | 4.2 mm | 0.165 in | Nylon, Polyamide (PA) | Shrouded - 4 Wall | UL94 V-2 | 4.2 mm | 0.165 in | 14 | 12.8 mm | 0.504 in | Tin-Lead | 600 VAC | All | 3.5 mm | 0.138 in | Copper Alloy | Locking Ramp | Header | 118.1 µin | 3 µm | Solder | 2 | Square | Natural |
TE Connectivity AMP Connectors 2-794664-2 | 105 ░C | -55 °C | Through Hole | Board to Board, Cable | Male Pin | Tin-Lead | 4.2 mm | 0.165 in | Nylon, Polyamide (PA) | Shrouded - 4 Wall | UL94 V-2 | 4.2 mm | 0.165 in | 22 positions | 12.8 mm | 0.504 in | Tin-Lead | 600 VAC | All | 3.5 mm | 0.138 in | Copper Alloy | Locking Ramp | Header | 118.1 µin | 3 µm | Solder | 2 | Square | Natural |
TE Connectivity AMP Connectors 794664-6 | 105 ░C | -55 °C | Through Hole | Board to Board, Cable | Male Pin | Tin-Lead | 4.2 mm | 0.165 in | Nylon, Polyamide (PA) | Shrouded - 4 Wall | UL94 V-2 | 4.2 mm | 0.165 in | 6 | 12.8 mm | 0.504 in | Tin-Lead | 600 VAC | All | 3.5 mm | 0.138 in | Copper Alloy | Locking Ramp | Header | 118.1 µin | 3 µm | Solder | 2 | Square | Natural |
TE Connectivity AMP Connectors 1-794664-8 | 105 ░C | -55 °C | Through Hole | Board to Board, Cable | Male Pin | Tin-Lead | 4.2 mm | 0.165 in | Nylon, Polyamide (PA) | Shrouded - 4 Wall | UL94 V-2 | 4.2 mm | 0.165 in | 18 | 12.8 mm | 0.504 in | Tin-Lead | 600 VAC | All | 3.5 mm | 0.138 in | Copper Alloy | Locking Ramp | Header | 118.1 µin | 3 µm | Solder | 2 | Square | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794664 Series
Connector Header Through Hole 18 position 0.165" (4.20mm)
