387-050-521-202
ActiveEDAC Inc.

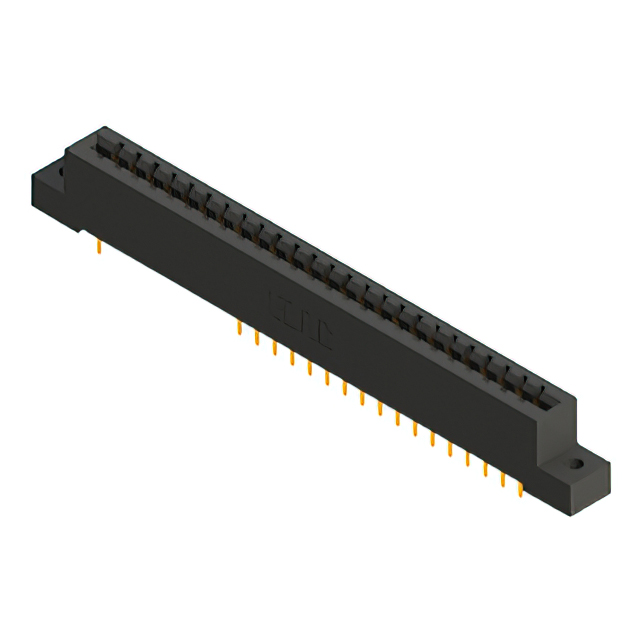

CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-050-521-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-050-521-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-050 Series
...
| Part | Gender | Contact Finish | Number of Positions | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Material | Number of Rows | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Color | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | Card Extender | ||||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | Card Extender | ||||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Wire Wrap | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | ||||||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | Card Extender | ||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Solder | Through Hole | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 | |||
EDAC Inc. | Female | Gold | 50 | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 2 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Wire Wrap | Through Hole Right Angle | -40 °C | 105 ░C | Cantilever | Black | 0.156 in | 3.96 mm | 25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
