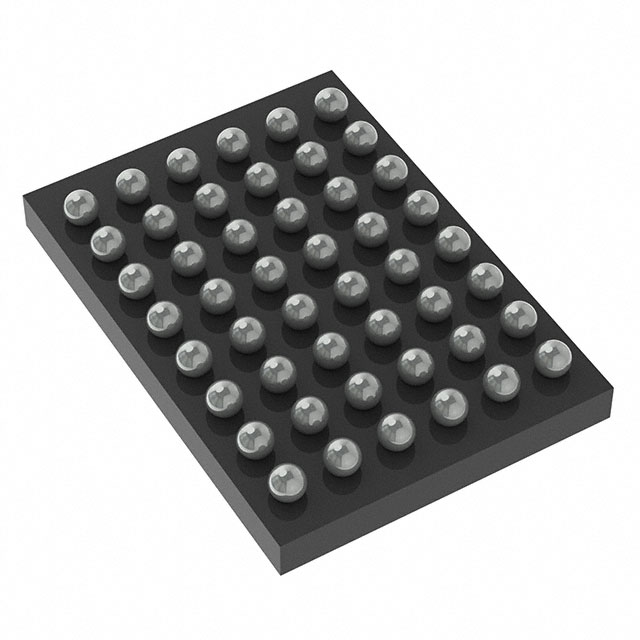

TFA9894DUK/N2Z
ObsoleteNXP USA Inc.
IC AMP CLSS D MONO 9.5MW 48WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TFA9894DUK/N2Z
ObsoleteNXP USA Inc.
IC AMP CLSS D MONO 9.5MW 48WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TFA9894DUK/N2Z | TFA9894 Series |
|---|---|---|
| - | - | |
| Max Output Power x Channels @ Load | 4 Ohm, 1, 5.6 W, 6 Ohm, 9.5 W, 8 Ohm, 7 W | 1 - 9.5 Ohm |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 1-Channel (Mono) | 1-Channel (Mono) |
| Package / Case | WLCSP, 48-UFBGA | WLCSP, 48-UFBGA |
| Supplier Device Package | 48-WLCSP (2.51x3.55) | 48-WLCSP (2.51x3.55) |
| Type | Class D | Class D |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
TFA9894 Series
IC AMP CLSS D MONO 9.5MW 48WLCSP
| Part | Package / Case | Max Output Power x Channels @ Load | Output Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|
NXP USA Inc. TFA9894DUK/N2Z | 48-UFBGA, WLCSP | 1, 4 Ohm, 5.6 W, 6 Ohm, 7 W, 8 Ohm, 9.5 W | 1-Channel (Mono) | 2.7 V | 5.5 V | 48-WLCSP (2.51x3.55) | 85 °C | -40 °C | Surface Mount | Class D |
NXP USA Inc. TFA9894UK/N1AZ | ||||||||||
NXP USA Inc. TFA9894AUK/N2Z | ||||||||||
NXP USA Inc. TFA9894AUK/N1Z | ||||||||||
NXP USA Inc. TFA9894UK/N2Z |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TFA9894 Series
Amplifier IC 1-Channel (Mono) Class D 48-WLCSP (2.51x3.55)
