CIM10J121NC
ObsoleteSamsung Electro-Mechanics
FERRITE BEADS MULTI-LAYER 120OHM 25% 100MHZ 0.5A 0.2OHM DCR 0603 T/R
CIM10J121NC
ObsoleteSamsung Electro-Mechanics
FERRITE BEADS MULTI-LAYER 120OHM 25% 100MHZ 0.5A 0.2OHM DCR 0603 T/R
Description
General part information
CIM10J121NC

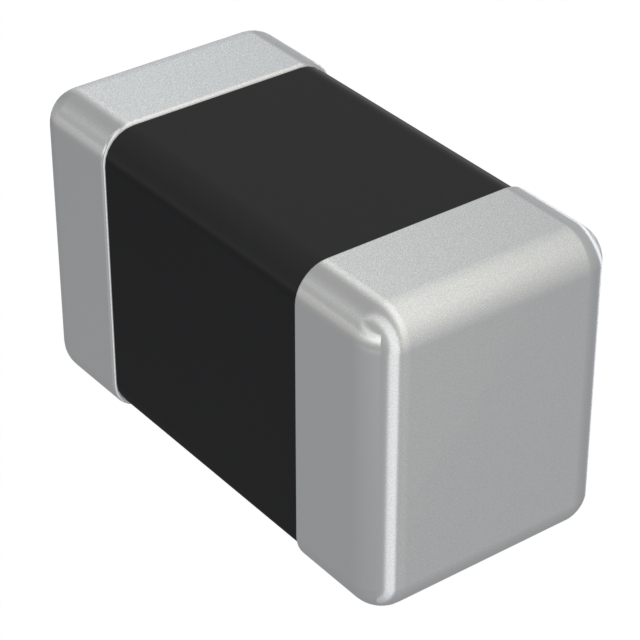

120 Ohms @ 100 MHz 1 Ferrite Bead 0603 (1608 Metric) 500mA 200mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CIM10J121NC |
|---|---|
| Current Rating (Max) | 500 mA |
| DC Resistance (DCR) (Max) | 200 mOhm |
| Height (Max) | 0.037 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.032 in, 0.031 in |
