HF017/25

Active

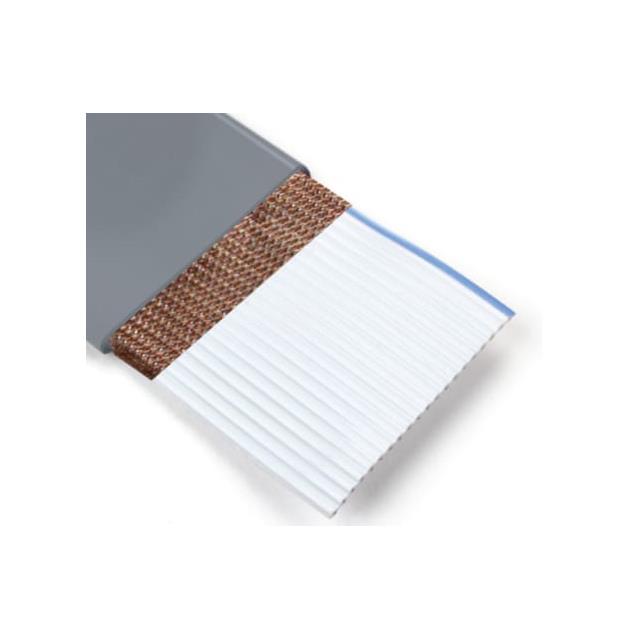

CBL RIBN 25COND 0.05 GRAY

Search across all available documentation for this part.

Active

CBL RIBN 25COND 0.05 GRAY

Technical Specifications

Parameters and characteristics for this part

CBL RIBN 25COND 0.05 GRAY

Part	Cable Type	Shielding	Wire Gauge	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Material	Pitch [x]	Pitch [x]	Number of Conductors	Jacket Color	Ribbon Width	Ribbon Width	Voltage	Ribbon Thickness [x]	Ribbon Thickness [x]	Length [x]	Length [x]
3M HF017/25	Flat Cable	Shielded	28 AWG	Polyolefin (PO)	7	36 AWG	Zippable	Copper, Tinned	0.05 in	1.27 mm	25	Gray	33.53 mm	1.32 in	300 V	2.16 mm	0.085 in	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 24.63

General part information

Flat Ribbon Cable Gray 25 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)

Technical documentation and resources

No documents available
