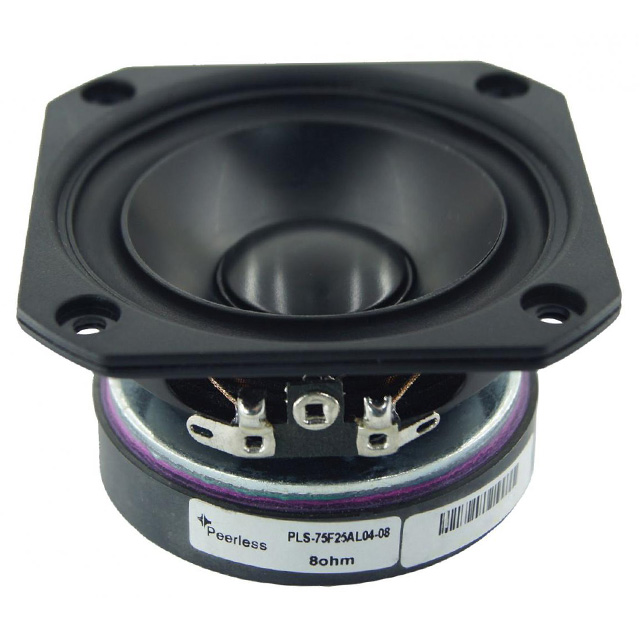

PLS-75F25AL04-08
ObsoletePeerless by Tymphany
SPEAKR 7.42OHM 25W TOP PT 84.5DB
PLS-75F25AL04-08
ObsoletePeerless by Tymphany
SPEAKR 7.42OHM 25W TOP PT 84.5DB
Description
General part information
PLS-75F25AL04-08
7.42 Ohms Full Range Speaker 25 W 100 Hz ~ 20 kHz Top Round, Square Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | PLS-75F25AL04-08 |
|---|---|
| Efficiency - dBA | 84.5 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 106.89 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 100 Hz |
| Height - Seated (Max) | 1.862 in |
| Impedance | 7.42 Ohms |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 25 W |
| Shape | Round, Square Frame |
| Size / Dimension Length | 3.071 in |
| Size / Dimension Width | 3.071 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
