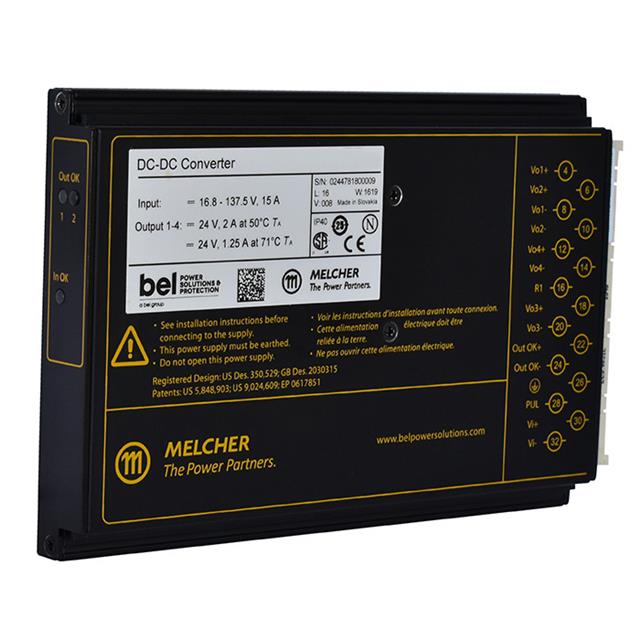

HP1601-9RTG

Active

Bel Power Solutions

DC/DC CONVERTER 24V 122W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 24V 122W

Technical Specifications

Parameters and characteristics for this part

DC/DC CONVERTER 24V 122W

Part	Type	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Efficiency	Voltage - Output 1	Mounting Type	Applications	Current - Output (Max) [Max]	Approval Agency	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Bel Power Solutions HP1601-9RTG	Conformal Coated, Enclosed	137.5 V	122 W	4.2 kV	6.47 in	20.32 mm	0.8 "	111 mm	4.37 "	164 mm	1	90 %	24 V	Chassis Mount	ITE (Commercial), Railway	5.1 A	cCSAus, CE, NEMKO	16.8 V	-40 °C	71 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated DC DC Converter 1 Output 24V 5.1A 137.5V Input
