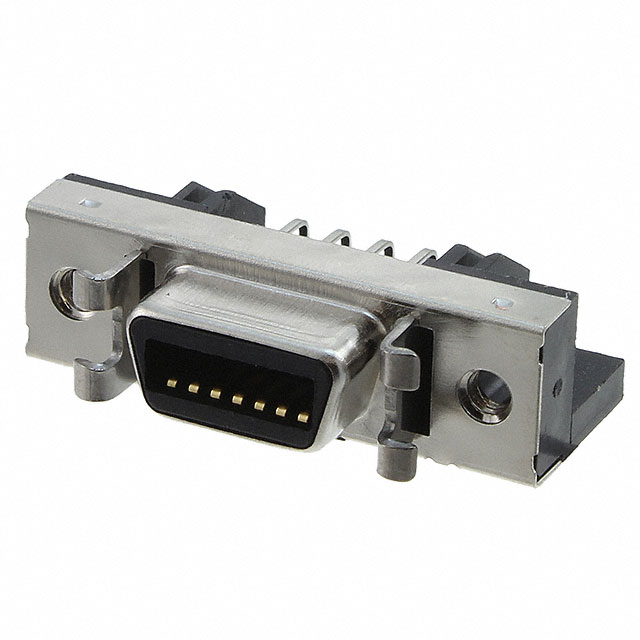

1-2232516-1
ActiveTE Connectivity Raychem Cable Protection
SCSI .050 REC ASS'Y 14P PB-FRE
Deep-Dive with AI
Search across all available documentation for this part.
1-2232516-1
ActiveTE Connectivity Raychem Cable Protection
SCSI .050 REC ASS'Y 14P PB-FRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2232516-1 |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | SCSI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.30 | |
| 10 | $ 4.39 | |||
| 25 | $ 4.08 | |||
| 40 | $ 3.92 | |||
| 80 | $ 3.71 | |||
| 230 | $ 3.40 | |||
| 440 | $ 3.23 | |||
| 945 | $ 3.03 | |||
| 2400 | $ 2.82 | |||
Description
General part information
SCSI Connectors Series
14 Position D-Shaped Connector, Receptacle, Board-to-Board, Panel Mount & Board Mount, 2 Shell Size, 1.27 mm [.05 in] Centerline, SCSI Connectors
