CNC-99-18-1-2

Obsolete

CnC Tech, LLC

CORD 18AWG 5-15P - FK TERM 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CNC-99-18-1-2

Obsolete

CnC Tech, LLC

CORD 18AWG 5-15P - FK TERM 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CNC-99 Series

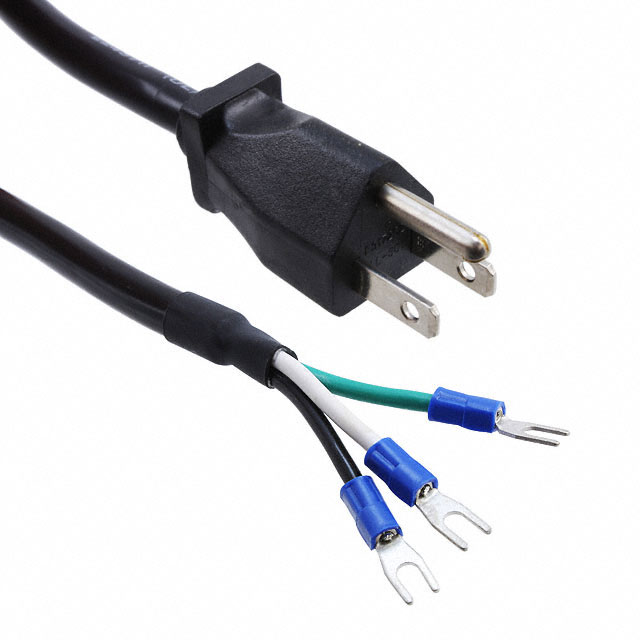

3.28' (1.00m) Power Cord Black NEMA 5-15P To Terminals, Forked SJT

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CNC-99-18-1-2	CNC-99 Series

1st Connector	NEMA 5-15P	NEMA 5-15P
2nd Connector	Forked, Terminals	Forked, Terminals
Approval Agency Marking	CSA, UL	CSA, UL, cUL
Approved Countries	United States, Canada	United States, Canada
Color	Black	Black
Cord Type	SJT	SJT
Current Rating (Amps)	-	90 A
Length [x]	1 m	1 - 500 m
Length [x]	3.28 ft	1.64 - 6.56 ft
Number of Conductors	3	3
Operating Temperature	105 C	60 - 105 °C
Shielding	-	Unshielded
Style	Male Pins (Blades) to Leads with Terminals	Male Pins (Blades) to Leads with Terminals, Male Pins (Blades) to Leads
Voltage Rating	125 VAC	125 VAC
Wire Gauge	18 AWG	13.5 - 18 AWG

CNC-99 Series

CORD 16AWG 5-15P - FK TERM 3.28'

Part	Cord Type	2nd Connector	Number of Conductors	Wire Gauge	Operating Temperature	1st Connector	Length [x]	Length [x]	Color	Style	Approval Agency Marking	Approved Countries	Shielding	Voltage Rating	Current Rating (Amps)
CnC Tech, LLC CNC-99-16	SJT	Forked, Terminals	3	16 AWG	60 °C	NEMA 5-15P	1 m	3.28 ft	Black	Male Pins (Blades) to Leads with Terminals	CSA, UL	Canada, United States	Unshielded	125 VAC
CnC Tech, LLC CNC-99-16-1-2	SJT	Forked, Terminals	3	16 AWG	105 C	NEMA 5-15P	1 m	3.28 ft	Black	Male Pins (Blades) to Leads with Terminals	CSA, UL	Canada, United States		125 VAC
CnC Tech, LLC CNC-99-14-1-2	SJT	Forked, Terminals	3	13.5 AWG	105 C	NEMA 5-15P	1 m	3.28 ft	Black	Male Pins (Blades) to Leads	cUL, UL	Canada, United States		125 VAC	90 A
CnC Tech, LLC CNC-99-16-2-2	SJT	Forked, Terminals	3	18 AWG	105 C	NEMA 5-15P	2 m	6.56 ft	Black	Male Pins (Blades) to Leads with Terminals	CSA, UL	Canada, United States		125 VAC
CnC Tech, LLC CNC-99-14-0.5-2	SJT	Forked, Terminals	3	13.5 AWG	105 C	NEMA 5-15P	500 mm	1.64 ft	Black	Male Pins (Blades) to Leads	cUL, UL	Canada, United States		125 VAC	90 A
CnC Tech, LLC CNC-99-16-0.5-2	SJT	Forked, Terminals	3	16 AWG	105 C	NEMA 5-15P	500 mm	1.64 ft	Black	Male Pins (Blades) to Leads with Terminals	CSA, UL	Canada, United States		125 VAC
CnC Tech, LLC CNC-99-18-1-2	SJT	Forked, Terminals	3	18 AWG	105 C	NEMA 5-15P	1 m	3.28 ft	Black	Male Pins (Blades) to Leads with Terminals	CSA, UL	Canada, United States		125 VAC
CnC Tech, LLC CNC-99-18-0.5-2	SJT	Forked, Terminals	3	18 AWG	105 C	NEMA 5-15P	500 mm	1.64 ft	Black	Male Pins (Blades) to Leads with Terminals	CSA, UL	Canada, United States		125 VAC
CnC Tech, LLC CNC-99-18-2-2	SJT	Forked, Terminals	3	18 AWG	105 C	NEMA 5-15P	2 m	6.56 ft	Black	Male Pins (Blades) to Leads with Terminals	CSA, UL	Canada, United States		125 VAC
