SPHWH2L3D30ED4PNN3

Samsung Semiconductor, Inc.

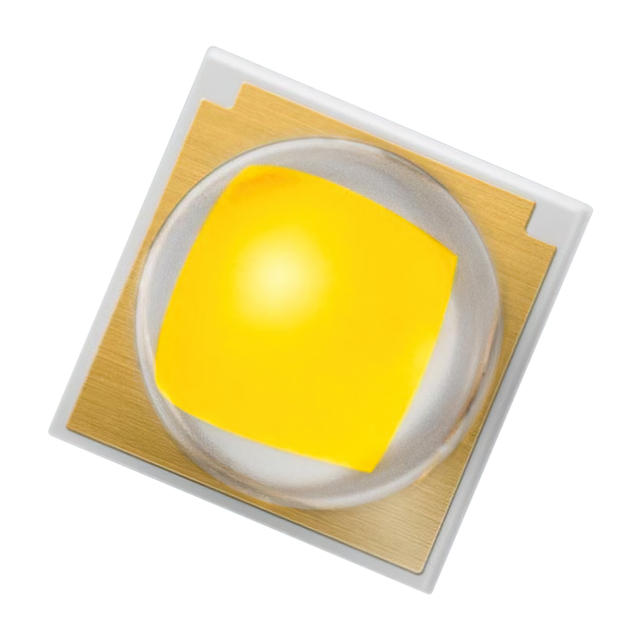

LED LH351B COOL WHITE 6500K 1414

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPHWH2L3D30ED4PNN3

Samsung Semiconductor, Inc.

LED LH351B COOL WHITE 6500K 1414

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.07
		10	$ 0.75
		100	$ 0.55
		500	$ 0.47
	Digi-Reel®	1	$ 1.07
		10	$ 0.75
		100	$ 0.55
		500	$ 0.47
	Tape & Reel (TR)	4000	$ 0.36

Description

General part information

SPHWH2 Series

LED Lighting LH351B White, Cool 6500K 5-Step MacAdam Ellipse 2.75V 350mA 120° 1414 (3535 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWH2L3D30ED4PNN3	SPHWH2 Series

CCT (K)	6500 K	2700 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Cool, White	Cool, White, Warm, Neutral
Configuration	-	Rectangle
CRI (Color Rendering Index)	80	70 - 92
Current - Max [Max]	1.5 A	1 - 405 A
Current - Test	350 mA	1.08 - 540 mA
Flux @ 85°C, Current - Test	165 lm	105 - 185 lm
Flux @ 85°C, Current - Test [Max]	180 lm	120 - 200 lm
Flux @ 85°C, Current - Test [Min]	150 lm	90 - 170 lm
Height	-	1.5 mm
Height - Seated (Max)	2.06 mm	2.06 mm
Height - Seated (Max)	-	0.8 - 2.11 mm
Height - Seated (Max) [Max] [z]	0.081 "	0.031 - 0.083 "
Lens Type	-	Flat
Light Emitting Surface (LES)	-	6 - 11 mm
Lumens/Watt @ Current - Test	171 lm/W	84 - 192 lm/W
Luminous Flux @ Current/Temperature	-	800 - 5030 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric, 5050 Metric
Package / Case	1414	1414, 2020, 3-SMD, No Lead
Size / Dimension	-	0.197 - 16 mm
Size / Dimension	-	0.197 - 19 mm
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 in	0.138 - 5 in
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.138 in	0.138 - 5 in
Supplier Device Package	1414	3535, 3-SMD, 1414
Supplier Device Package	-	2020
Temperature - Test	-	85 °C
Thermal Resistance of Package	-	3 °C/W
Thermal Resistance of Package [custom]	4 °C/W	4 °C/W
Type	-	Chip On Board (COB)
Viewing Angle	120 °	115 - 120 °
Voltage - Forward (Vf) (Typ)	2.75 V	2.75 - 34.5 V

SPHWH2 Series

LED COB LC020C CL WH RECT 5000K

...

Part	Lumens/Watt @ Current - Test	Type	Height [z]	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Configuration	Current - Test	Color	Light Emitting Surface (LES) [diameter]	Lens Type	Temperature - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test	Current - Max [Max]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [custom]	CCT (K)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Thermal Resistance of Package [diameter]	Supplier Device Package	Height - Seated (Max) [Max] [z]
Samsung Semiconductor, Inc. SPHWH2HDNC05YHR3C1	135 lm/W	Chip On Board (COB)	1.5 mm	12 mm	15 mm	80	Rectangle	540 mA	Cool, White	8 mm	Flat	85 °C	115 °	2520 lm	34.5 V
Samsung Semiconductor, Inc. SPHWH2L3D30ED4UPM3	158 lm/W					80		350 mA	Warm, White				120 °		2.8 V	155 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	3500 K
Samsung Semiconductor, Inc. SPHWH2HDNE05YHQTC1	135 lm/W	Chip On Board (COB)	1.5 mm	16 mm	19 mm	80	Rectangle	1.08 A	Cool, White	11 mm	Flat	85 °C	115 °	5030 lm	34.5 V		1.62 A												5700 K
Samsung Semiconductor, Inc. SPHWH2L3D30ED4WPG3	117 lm/W					80		350 mA	Warm, White				120 °		2.8 V	115 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	2700 K	130 lm	100 lm
Samsung Semiconductor, Inc. SPHWH2HDNA05YHU2C1	125 lm/W	Chip On Board (COB)	1.5 mm	12 mm	15 mm	80	Rectangle	270 mA	Warm, White	6 mm Dia	Flat	85 °C	115 °	1160 lm	34.5 V		405 mA												3500 K
Samsung Semiconductor, Inc. SPHWH2HDNC05YHRTC1	135 lm/W	Chip On Board (COB)	1.5 mm	12 mm	15 mm	80	Rectangle	540 mA	Cool, White	8 mm	Flat	85 °C	115 °	2520 lm	34.5 V														5000 K
Samsung Semiconductor, Inc. SPHWH2L3D30CD4T0K3	148 lm/W					70		350 mA	Neutral, White				120 °		2.8 V	145 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	4000 K	160 lm	130 lm
Samsung Semiconductor, Inc. SPHWH2L5N6H0YBT5A3				0.197 "	0.197 in			350 mA	Neutral, White				120 °		5.8 V		1 A	Surface Mount		5050 Metric	2020		0.031 "			5 mm	5 mm		4000 K			3 °C/W	2020	0.8 mm
Samsung Semiconductor, Inc. SPHWH2L3D30ED4QTM3	158 lm/W					80		350 mA	Cool, White				120 °		2.8 V	155 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	5700 K
Samsung Semiconductor, Inc. SPHWH2L3D30ED4TPK3	148 lm/W					80		350 mA	Neutral, White				120 °		2.8 V	145 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	4000 K	160 lm	130 lm
