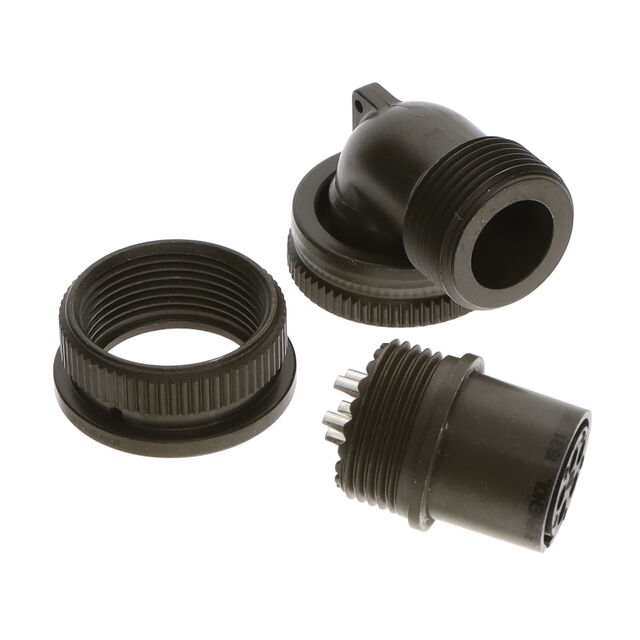

MS3108A14S-5S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 5P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108A14S-5S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 5P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108A14S-5S | MS3108A14 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 13 A |
| Features | Coupling Nut | Coupling Nut |
| Grade | - | Military |
| Ingress Protection | - | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-5015 | MIL-DTL-5015, MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 14S-5 | 14S-2, 14S-5, 14S-1 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 200 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.93 | |
| 10 | $ 40.22 | |||
| 25 | $ 38.48 | |||
| 50 | $ 37.24 | |||
| 100 | $ 36.00 | |||
| 250 | $ 34.01 | |||
MS3108A14 Series
PLUG
| Part | Shell Material | Ingress Protection | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Shell Finish | Orientation | Current Rating (Amps) | Number of Positions | Insert Material | Qualification | Mounting Type | Shielding | Shell Size - Insert | Voltage Rating | Connector Type | Primary Material | Features | Grade | Contact Material | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108A14S-10P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108A14-3S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108A14S-9P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108A14S-4S | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108A14S-2P | Aluminum Alloy | Environment Resistant | Olive Drab | -55 °C | 125 °C | Silver | Olive Drab Chromate over Cadmium | N | 13 A | 4 | Neoprene | MIL-DTL-5015 | Free Hanging (In-Line), Right Angle | Unshielded | 14S-2 | 200 VAC, 250 VDC | Male Pins, Plug | Metal | Coupling Nut | Military | Copper Alloy | Marine, Military |
Amphenol Industrial Operations MS3108A14S-11P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108A14-3P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108A14S-5P | Aluminum Alloy | Environment Resistant | Olive Drab | -55 °C | 125 °C | Silver | Olive Drab Chromate over Cadmium | N | 13 A | Neoprene | MIL-DTL-5015 | Free Hanging (In-Line), Right Angle | Unshielded | 14S-5 | 200 VAC, 250 VDC | Male Pins, Plug | Metal | Coupling Nut | Military | Copper Alloy | Marine, Military | |
Amphenol Industrial Operations MS3108A14S-4P | ||||||||||||||||||||||
Amphenol Industrial Operations MS3108A14S-5S | Aluminum Alloy | Olive Drab | -55 °C | 125 °C | Silver | Olive Drab Chromate over Cadmium | N | Neoprene | MIL-5015 | Free Hanging (In-Line), Right Angle | Unshielded | 14S-5 | Female Sockets, Plug | Metal | Coupling Nut | Copper Alloy | Marine, Military |
Description
General part information
MS3108A14 Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
