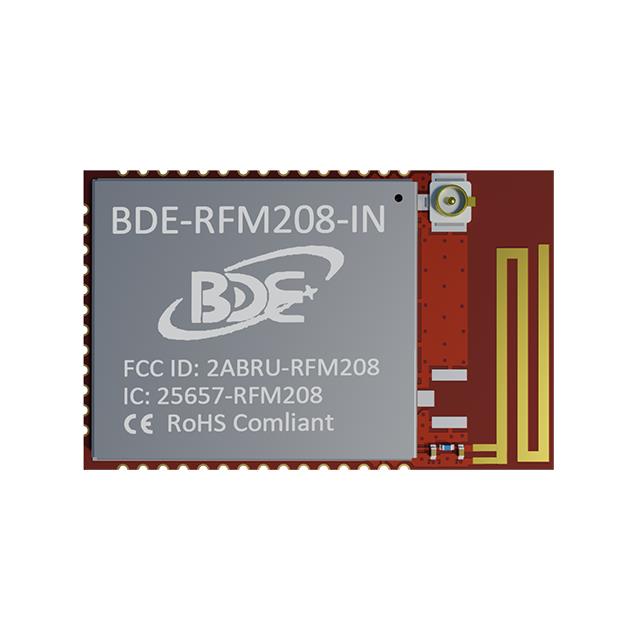

BDE-RFM208-IN-UA
ActiveBDE Technology
RF TXRX MODULE BT PCB TRACE SMD
BDE-RFM208-IN-UA
ActiveBDE Technology
RF TXRX MODULE BT PCB TRACE SMD
Description
General part information
BDE-RFM208-IN-UA
802.15.4, Bluetooth, General ISM < 1GHz 6LoWPAN, Bluetooth v5.2, KNX, Thread, Wireless M-Bus, Wi-SUN, Zigbee® Transceiver Module 868MHz, 915MHz, 2.4GHz PCB Trace, Antenna Not Included, U.FL Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BDE-RFM208-IN-UA |
|---|---|
| Antenna Type | PCB Trace, U.FL, Antenna Not Included |
| Current - Receiving (Max) | 6.9 mA |
| Current - Receiving (Min) | 5.8 mA |
| Current - Transmitting (Max) | 85 mA |
| Current - Transmitting (Min) | 63 mA |
| Data Rate | 125 kBaud |
| Frequency | 2.4GHz, 868MHz, 915MHz |
| Frequency | 915 MHz, 2.4 GHz, 868 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 42-SMD Module |
| Power - Output | 20 dBm |
| Protocol | 6LoWPAN, Bluetooth v5.2, Wireless M-Bus, KNX, Wi-SUN, Zigbee®, Thread |
| RF Family/Standard | General ISM < 1GHz, 802.15.4, Bluetooth |
| Sensitivity | -121 dBm |
| Serial Interfaces | SPI, UART, I2S, I2C, GPIO, ADC |
| Utilized IC / Part | CC1352R |
| Voltage - Supply (Maximum) | 3.8 V |
| Voltage - Supply (Minimum) | 2.1 V |
