09120009972

Active

HARTING

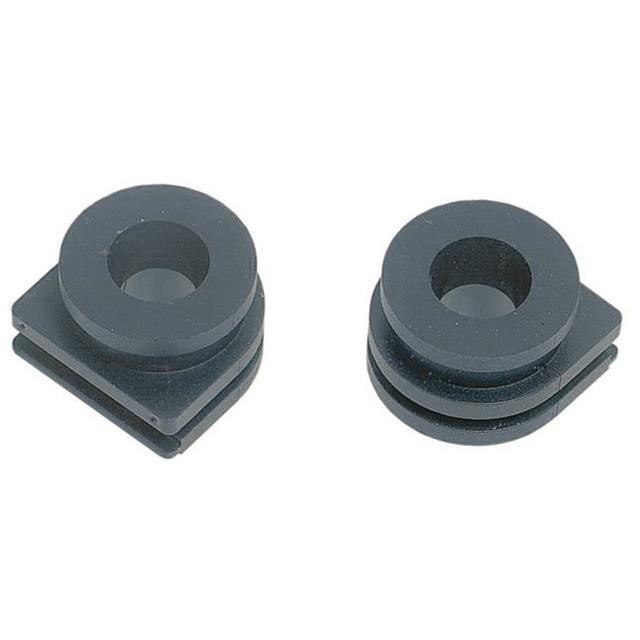

HAN-POWER S PANEL FEED THROUGH SEAL FOR CABLE 16-19MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

HARTING

HAN-POWER S PANEL FEED THROUGH SEAL FOR CABLE 16-19MM ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Grommet

Technical documentation and resources

Specification	09120009972	09120009 Series

	-	-
Accessory Type	Grommet	Grommet, Coding Pin, PCB Adapter, Gasket, Blanking Plug, RJ45 Plug, Fixing Screw
For Use With/Related Products	Han-Power® S Housings	Han-Power® S Housings, Han® Q Inserts, Han-Compact® Bases, Han-Modular® RJ45 Series, Han® Q 3A Inserts
Ratings	-	Cat5e
Specifications	-	Red, 5 Positions, Female, Male
Specifications	-	7 Gallon
Specifications [Max] [diameter]	19 mm	10 - 22 mm
Specifications [Min] [diameter]	16 mm	7 - 19 mm

Part	Accessory Type	For Use With/Related Products	Specifications [Min] [diameter]	Specifications [Max] [diameter]	Specifications	Ratings
HARTING 09120009971	Grommet	Han-Power® S Housings
HARTING 09120009966	Grommet	Han-Power® S Housings	10 mm	13 mm
HARTING 09120009970	Grommet	Han-Power® S Housings	10 mm	13 mm
HARTING 09120009927	Coding Pin				Red
HARTING 09120009905	PCB Adapter	Han® Q Inserts			5 Positions
HARTING 09120009912	Gasket	Han-Compact® Bases
HARTING 09120009974	Blanking Plug	Han-Power® S Housings
HARTING 09120009924	Coding Pin	Han® Q Inserts			Red
HARTING 09120009957	RJ45 Plug	Han-Modular® RJ45 Series				Cat5e
HARTING 09120009968	Blanking Plug	Han-Power® S Housings
