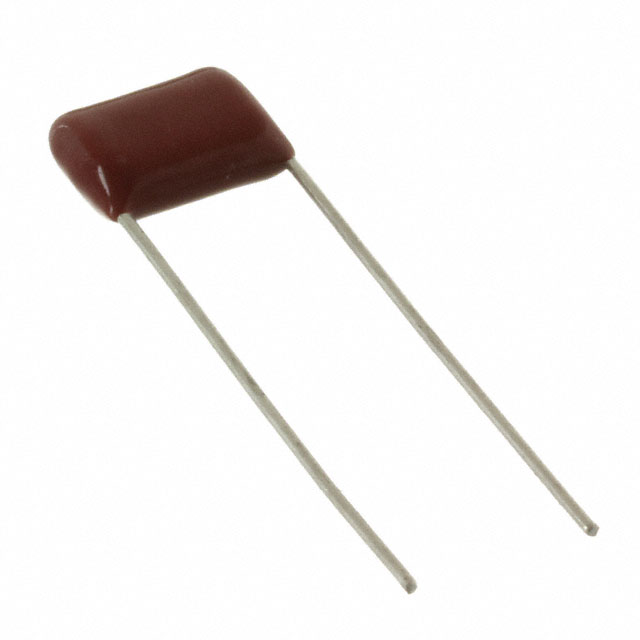

224MSR100K
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 100VDC RAD
224MSR100K
ActiveCornell Dubilier Knowles
CAP FILM 0.22UF 10% 100VDC RAD
Description
General part information
224MSR100K
0.22 µF Film Capacitor 63V 100V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 224MSR100K |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.22 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.394 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.256 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
