145HC5112KR
ActiveCornell Dubilier Knowles
CAP FILM 1.4UF 10% 1.1KVAC AXIAL
145HC5112KR
ActiveCornell Dubilier Knowles
CAP FILM 1.4UF 10% 1.1KVAC AXIAL
Description
General part information
145HC5112KR

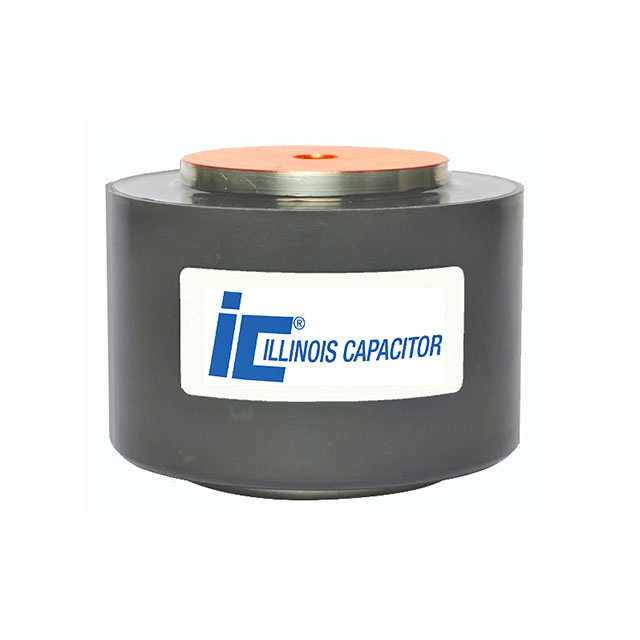

1.4 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP) Axial, Can - Screw Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 145HC5112KR |
|---|---|
| Applications | High Pulse, DV/DT, Conduction Cooled |
| Capacitance | 1.4 µF |
| Dielectric Material | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1.2 mOhm |
| Height - Seated (Max) | 2.819 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial, Can - Screw Terminals |
| Size / Dimension Diameter | 3.15 in |
| Termination | Threaded, Female |
| Tolerance | 10 % |
| Voltage Rating - AC | 1.1 kVAC |
