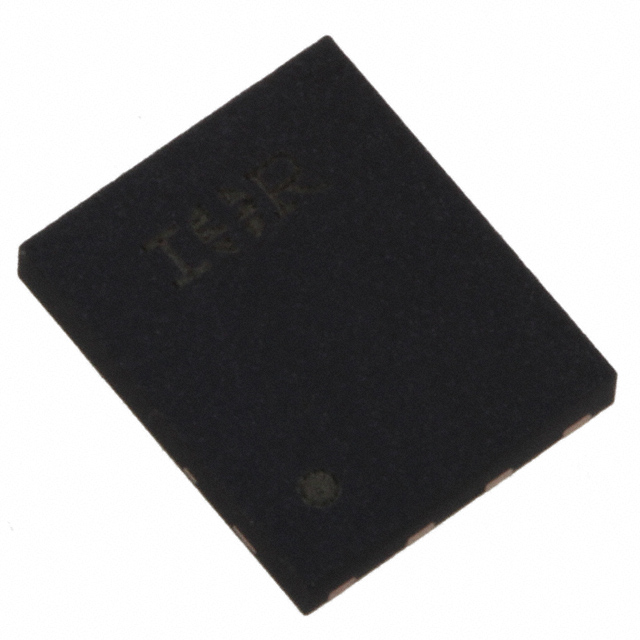

IRFH9310TRPBF

Active

Infineon Technologies

IR MOSFET™ P-CHANNEL ; SUPERSO8 5X6 PACKAGE; 4.6 MOHM;

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRFH9310TRPBF

Current - Continuous Drain (Id) @ 25°C	40 A, 21 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	58 nC
Input Capacitance (Ciss) (Max) @ Vds	5250 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power Dissipation (Max)	3.1 W
Rds On (Max) @ Id, Vgs	4.6 mOhm
Supplier Device Package	PQFN (5x6)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V

IRFH9310 Series

Part	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Supplier Device Package	Technology	Drain to Source Voltage (Vdss)	Vgs (Max)	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	Package / Case	Drive Voltage (Max Rds On, Min Rds On)
Infineon Technologies IRFH9310TRPBF	Surface Mount	21 A 40 A	3.1 W	PQFN (5x6)	MOSFET (Metal Oxide)	30 V	20 V	P-Channel	5250 pF	-55 °C	150 °C	58 nC	4.6 mOhm	8-PowerVDFN	4.5 V 10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.02
		10	$ 1.29
		100	$ 0.87
		500	$ 0.69
		1000	$ 0.63
		2000	$ 0.59
	Digi-Reel®	1	$ 2.02
		10	$ 1.29
		100	$ 0.87
		500	$ 0.69
		1000	$ 0.63
		2000	$ 0.59
	Tape & Reel (TR)	4000	$ 0.54
		8000	$ 0.53
Newark	Each (Supplied on Full Reel)	4000	$ 0.83
		8000	$ 0.82

Description

General part information

IRFH9310 Series

The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
