5-1418760-3
ActiveTE Connectivity AMP Connectors

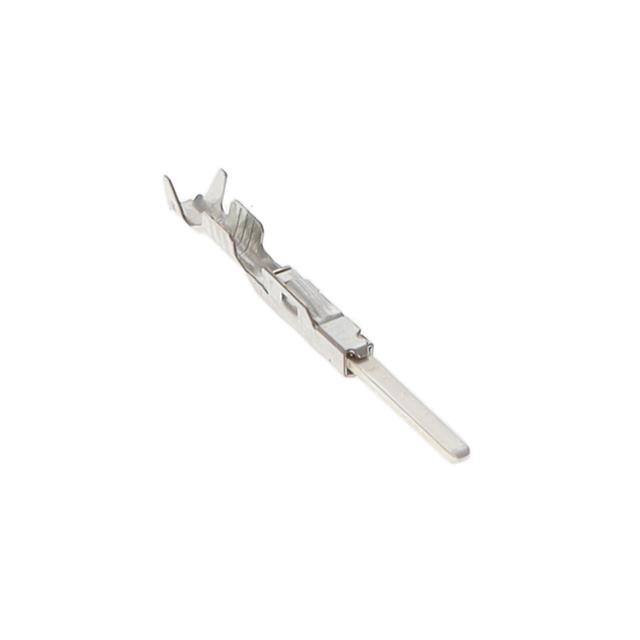

CONN TAB 18-20AWG CRIMP SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-1418760-3
ActiveTE Connectivity AMP Connectors
CONN TAB 18-20AWG CRIMP SILVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-1418760-3 | 1418760 Series |
|---|---|---|
| Contact Finish | Silver | Tin, Gold, Silver |
| Contact Finish Thickness | - | 31.5 µin |
| Contact Finish Thickness | - | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Tab | Tab |
| Type | Stamped | Stamped |
| Wire Gauge | 20 AWG | 20 AWG |
| Wire Gauge | - | 17.5 AWG |
| Wire Gauge | - | 20 AWG |
1418760 Series
CONN TAB 18-20AWG CRIMP TIN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Termination | Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1418760-1 | 17.5 AWG | 20 AWG | Tab | Crimp | Stamped | Tin | |||
TE Connectivity AMP Connectors 5-1418760-1 | 17.5 AWG | 20 AWG | Tab | Crimp | Stamped | Tin | |||
TE Connectivity AMP Connectors 1418760-2 | 17.5 AWG | 20 AWG | Tab | Crimp | Gold | 31.5 µin | 0.8 µm | ||
TE Connectivity AMP Connectors 5-1418760-3 | Tab | Crimp | Stamped | Silver | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.30 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.16 | |||
| Tape & Reel (TR) | 9000 | $ 0.15 | ||
| 18000 | $ 0.13 | |||
| 27000 | $ 0.13 | |||
Description
General part information
1418760 Series
Tab Contact Silver 20 AWG Crimp Stamped
