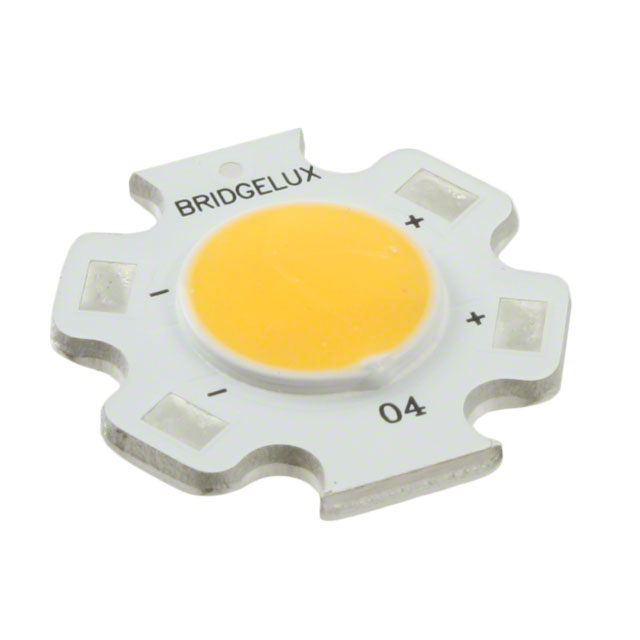

BXRA-27E0540-A-00
ObsoleteBRIDGELUX
LED COB ES WH STARBRD 2700K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXRA-27E0540-A-00
ObsoleteBRIDGELUX
LED COB ES WH STARBRD 2700K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXRA-27E0540-A-00 | BXRA-27 Series |
|---|---|---|
| CCT (K) | 2700 K | 2700 K |
| Color | White, Warm | White, Warm |
| Configuration | Starboard | Rectangle, Starboard, Square |
| CRI (Color Rendering Index) | 80 | 80 - 97 |
| Current - Max [Max] | 500 mA | 1 - 750 A |
| Current - Test | 350 mA | 1.75 - 500 mA |
| Height [z] | 3 mm | 2.6 - 3 mm |
| Lens Type | Domed | Domed, Flat |
| Lumens/Watt @ Current - Test | 85 lm/W | 57 - 95 lm/W |
| Luminous Flux @ Current/Temperature | 560 lm | 480 - 4640 lm |
| Size / Dimension [x] | 19.9 mm | 19.9 - 49.5 mm |
| Size / Dimension [y] | 19.9 mm | 2 - 45.3 mm |
| Temperature - Test | - | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 18.8 V | 17.9 - 37 V |
BXRA-27 Series
LED COB ES WARM WHT RECT 2700K
| Part | CCT (K) | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Height [z] | Size / Dimension [y] | Size / Dimension [x] | Color | Configuration | Lens Type | Viewing Angle | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Type | Current - Test | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXRA-27E2000-B-03 | 2700 K | 2260 lm | 87 lm/W | 80 | 3 mm | 25.8 mm | 22.8 mm | Warm, White | Rectangle | Domed | 120 ° | 1 A | 37 V | Chip On Board (COB) | ||
BRIDGELUX BXRA-27E1200-B-03 | 2700 K | 1400 lm | 95 lm/W | 80 | 3 mm | 25.8 mm | 22.8 mm | Warm, White | Rectangle | Domed | 120 ° | 1 A | Chip On Board (COB) | 500 mA | ||
BRIDGELUX BXRA-27G1200-B-00 | 2700 K | 1190 lm | 80 lm/W | 90 | 3 mm | 25.8 mm | 22.8 mm | Warm, White | Rectangle | Domed | 120 ° | 750 mA | Chip On Board (COB) | 500 mA | ||
BRIDGELUX BXRA-27H4000-H-03 | 2700 K | 2795 lm | 57 lm/W | 97 | 2.6 mm | 45.3 mm | 49.5 mm | Warm, White | Rectangle | Flat | 120 ° | 3 A | 23.5 V | Chip On Board (COB) | 2.1 A | 85 °C |
BRIDGELUX BXRA-27E0540-A-00 | 2700 K | 560 lm | 85 lm/W | 80 | 3 mm | 19.9 mm | 19.9 mm | Warm, White | Starboard | Domed | 120 ° | 500 mA | 18.8 V | Chip On Board (COB) | 350 mA | |
BRIDGELUX BXRA-27E0740-A-03 | 2700 K | 810 lm | 82 lm/W | 80 | 3 mm | 19.9 mm | 19.9 mm | Warm, White | Starboard | Domed | 120 ° | 500 mA | 28.1 V | Chip On Board (COB) | 350 mA | |
BRIDGELUX BXRA-27E0800-B-00 | 2700 K | 950 lm | 92 lm/W | 80 | 3 mm | 25.8 mm | 22.8 mm | Warm, White | Rectangle | Domed | 120 ° | 1 A | Chip On Board (COB) | 500 mA | ||
BRIDGELUX BXRA-27G1200-B-03 | 2700 K | 1190 lm | 80 lm/W | 90 | 3 mm | 25.8 mm | 22.8 mm | Warm, White | Rectangle | Domed | 120 ° | 750 mA | Chip On Board (COB) | 500 mA | ||
BRIDGELUX BXRA-27G0740-A-00 | 2700 K | 720 lm | 75 lm/W | 90 | 3 mm | 19.9 mm | 19.9 mm | Warm, White | Starboard | Domed | 120 ° | 500 mA | 27.3 V | Chip On Board (COB) | 350 mA | |
BRIDGELUX BXRA-27G0540-A-00 | 2700 K | 480 lm | 75 lm/W | 90 | 3 mm | 19.9 mm | 19.9 mm | Warm, White | Starboard | Domed | 120 ° | 500 mA | 18.2 V | Chip On Board (COB) | 350 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BXRA-27 Series
LED Lighting COBs Engines Modules Chip On Board (COB) ES STAR White, Warm Starboard
