0034.9871
ActiveFUSE KIT, QUICK ACTING, TIME LAG, CERAMIC, MINIATURE, SP 5X20MM / SPT 5X20MM, 800MA TO 10A
0034.9871
ActiveFUSE KIT, QUICK ACTING, TIME LAG, CERAMIC, MINIATURE, SP 5X20MM / SPT 5X20MM, 800MA TO 10A
Description
General part information
0034.9871

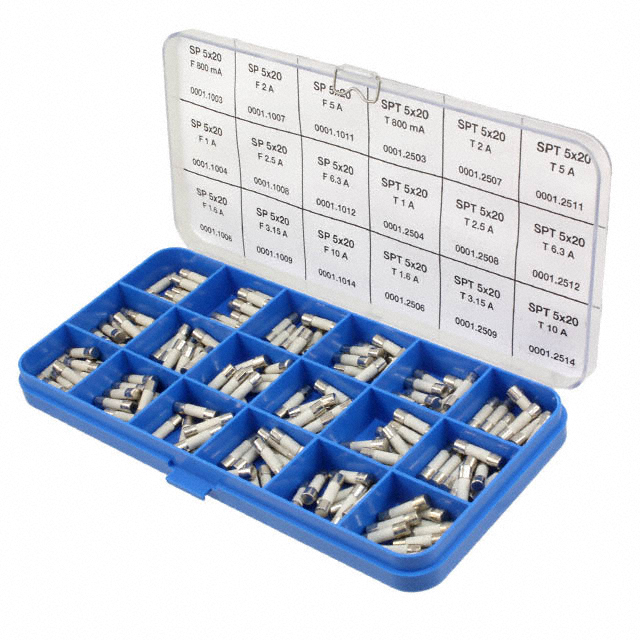

The 0034.9871 from Schurter is a miniature FSF 5X20 fuse kit for quick sampling of customers and engineering design support. The fuse kit includes 18 fuse links out of which 9 fuse links are of SP 5x20 and 9 fuse links are of SPT 5x20 fuses types. It is used in primary protection in equipment.
Technical Specifications
Parameters and characteristics for this part
| Specification | 0034.9871 |
|---|---|
| Current Rating (Maximum) | 10 A |
| Current Rating (Minimum) | 0.8 A |
| Kit Type | Cartridge, Ceramic |
| Mounting Type | Holder |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Packages Included | 5mm x 20mm |
| Quantity | 180 pcs |
| Quantity per Value | 10 Each |
| Quantity Values | 18 Values |
| Response Time | Fast Blow, Slow Blow |
| Voltage Rating | 250 V |
