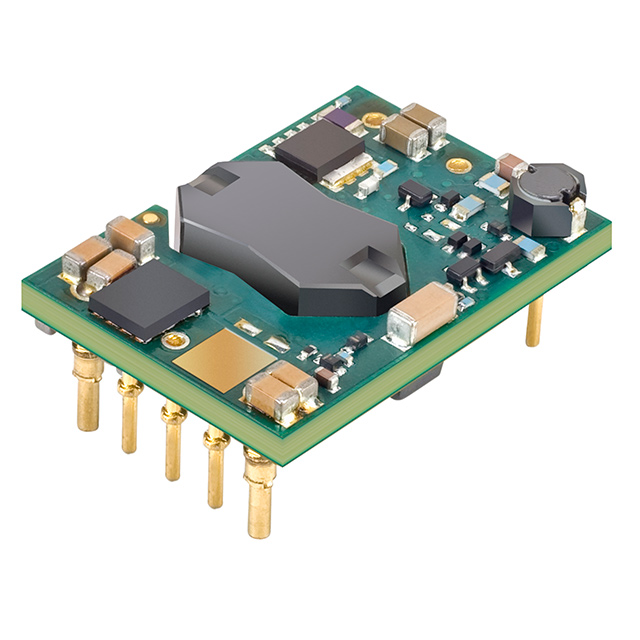

UWS-12/4.5-Q48P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 54W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UWS-12/4.5-Q48P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 54W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UWS-12/4.5-Q48P-C | UWS-12 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 4.5 A | 4.5 A |
| Efficiency | 91 % | 91 % |
| Features | Remote On/Off, UVLO | Remote On/Off, UVLO |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module, 1/16 Brick | 8-DIP Module, 1/16 Brick, 1/16 Brick, 8-SMD Module |
| Power (Watts) | 54 W | 54 W |
| Size / Dimension [x] | 1.31 in | 1.31 in |
| Size / Dimension [x] | 33.3 mm | 33.3 mm |
| Size / Dimension [y] | 0.91 in | 0.91 in |
| Size / Dimension [y] | 23.1 mm | 23.1 mm |
| Size / Dimension [z] | 0.36 in | 0.36 in |
| Size / Dimension [z] | 9.1 mm | 9.1 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 128 | $ 33.03 | |
UWS-12 Series
DC DC CONVERTER 12V 54W
| Part | Voltage - Input (Max) [Max] | Voltage - Isolation | Mounting Type | Efficiency | Voltage - Input (Min) [Min] | Voltage - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Type | Current - Output (Max) [Max] | Power (Watts) | Applications | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UWS-12/4.5-Q48NH-C | 75 V | 2250 VDC | Through Hole | 91 % | 18 V | 12 V | 1 | 85 °C | -40 °C | Active Low, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | 8-DIP Module, 1/16 Brick | Isolated Module | 4.5 A | 54 W | ITE (Commercial) | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-12/4.5-Q48NM-C | 75 V | 2250 VDC | Surface Mount | 91 % | 18 V | 12 V | 1 | 85 °C | -40 °C | Active Low, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | 1/16 Brick, 8-SMD Module | Isolated Module | 4.5 A | 54 W | ITE (Commercial) | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-12/4.5-Q48N-C | 75 V | 2250 VDC | Through Hole | 91 % | 18 V | 12 V | 1 | 85 °C | -40 °C | Active Low, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | 8-DIP Module, 1/16 Brick | Isolated Module | 4.5 A | 54 W | ITE (Commercial) | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-12/4.5-Q48NM-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UWS-12/4.5-Q48P-C | 75 V | 2250 VDC | Through Hole | 91 % | 18 V | 12 V | 1 | 85 °C | -40 °C | Active High, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | 8-DIP Module, 1/16 Brick | Isolated Module | 4.5 A | 54 W | ITE (Commercial) | Remote On/Off, UVLO |
Murata Power Solutions Inc. UWS-12/4.5-Q48PH-C | 75 V | 2250 VDC | Through Hole | 91 % | 18 V | 12 V | 1 | 85 °C | -40 °C | Active High, Enable | 0.91 in | 23.1 mm | 0.36 in | 9.1 mm | 1.31 in | 33.3 mm | 8-DIP Module, 1/16 Brick | Isolated Module | 4.5 A | 54 W | ITE (Commercial) | Remote On/Off, UVLO |
Description
General part information
UWS-12 Series
Isolated Module DC DC Converter 1 Output 12V 4.5A 18V - 75V Input
