155224-5203-RB
Active3M

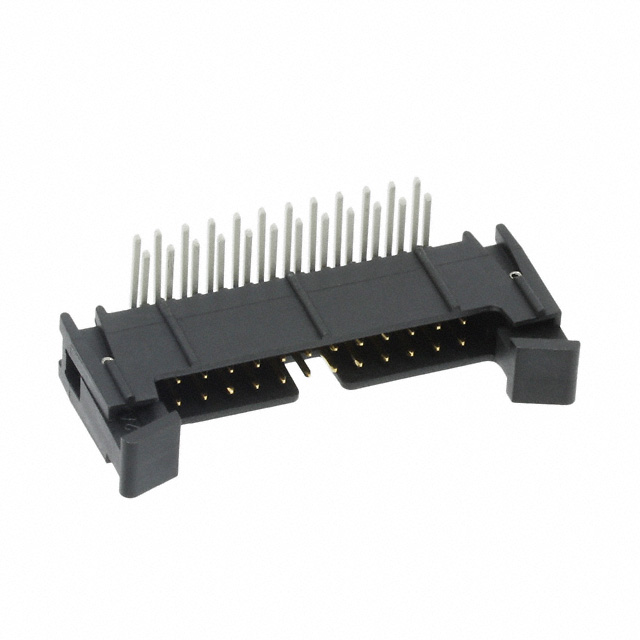

CONN HEADER R/A 24POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
155224-5203-RB
Active3M
CONN HEADER R/A 24POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 155224-5203-RB | 155224 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Mating | 0.15 in | 0.15 in |
| Contact Length - Mating | 3.81 mm | 3.81 mm |
| Contact Length - Post | 3.94 mm | 3.94 mm |
| Contact Length - Post | 0.155 " | 0.155 " |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.25 A | 1.25 A |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | Keying Slot | Pick and Place, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 6.28 mm | 6.28 - 10.8 mm |
| Insulation Height | 0.247 in | 0.247 - 0.425 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Surface Mount, Through Hole, Right Angle |
| Number of Positions | 24 | 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Row Spacing - Mating | 0.079 in | 0.079 in |
| Row Spacing - Mating | 2 mm | 2 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
155224 Series
CONN HEADER SMD 24POS 2MM
| Part | Features | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Mating | Contact Length - Mating | Style | Insulation Color | Shrouding | Material Flammability Rating | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Number of Rows | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Mating | Termination | Contact Finish - Post | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Connector Type | Current Rating (Amps) | Contact Material | Number of Positions Loaded | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Keying Slot, Pick and Place | 0.079 in | 2 mm | 0.15 in | 3.81 mm | Board to Cable/Wire | Black | Shrouded - 4 Wall | UL94 V-0 | Square | 30 Áin | 0.76 Ám | Male Pin | 2 | 0.425 in | 10.8 mm | Surface Mount | Gold | Solder | Tin | Latch Lock/Eject Hooks | 105 ░C | -55 °C | 0.079 in | 2 mm | 200 µin | 5.08 µm | 24 | Header | 1.25 A | Copper Alloy | All | |||
Keying Slot | 0.079 in | 2 mm | 0.15 in | 3.81 mm | Board to Cable/Wire | Black | Shrouded - 4 Wall | UL94 V-0 | Square | 30 Áin | 0.76 Ám | Male Pin | 2 | 0.247 in | 6.28 mm | Through Hole, Right Angle | Gold | Solder | Tin | Latch Lock/Eject Hooks | 105 ░C | -55 °C | 0.079 in | 2 mm | 200 µin | 5.08 µm | 24 | Header | 1.25 A | Copper Alloy | All | 3.94 mm | 0.155 " | |
Keying Slot | 0.079 in | 2 mm | 0.15 in | 3.81 mm | Board to Cable/Wire | Black | Shrouded - 4 Wall | UL94 V-0 | Square | 30 Áin | 0.76 Ám | Male Pin | 2 | 0.425 in | 10.8 mm | Surface Mount | Gold | Solder | Tin | Latch Lock/Eject Hooks | 105 ░C | -55 °C | 0.079 in | 2 mm | 200 µin | 5.08 µm | 24 | Header | 1.25 A | Copper Alloy | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
155224 Series
Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)
