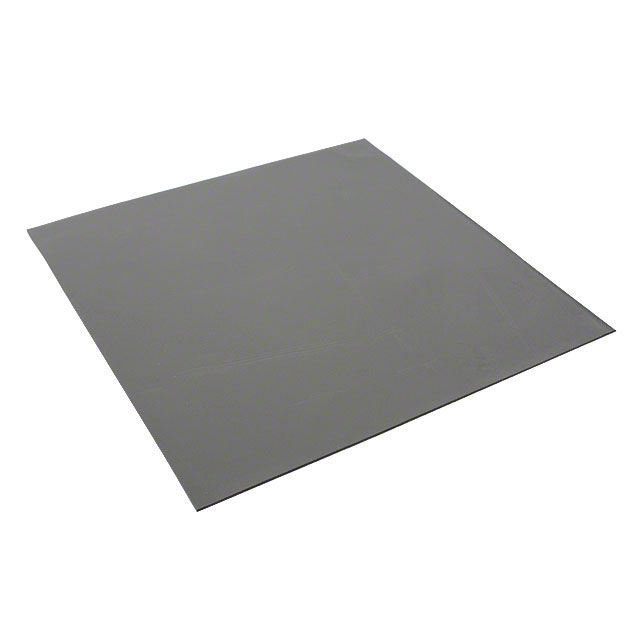

Specification	TG-A486C-150-150-1.0-0

Color	Gray
Material	Silicone Elastomer
Outline Length	150 mm
Outline Width	150 mm
Shape	Square
Shelf Life	24 Months
Thermal Conductivity	3.2 W/m-K
Thickness	0.0394 in
Type	Sheet, Conductive Pad

TG-A486C Series

Part	Shelf Life	Material	Type	Color	Thermal Conductivity	Outline Width	Outline Length	Thickness	Adhesive	Shape
t-Global Technology TG-A486C-320-320-3.0-1A	12 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	320 mm	320 mm	0.118 in	Adhesive - One Side	Square
t-Global Technology TG-A486C-320-320-1.0-1A	12 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	320 mm	320 mm	0.0394 in	Adhesive - One Side	Square
t-Global Technology TG-A486C-150-150-3.0-1A	12 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	150 mm	150 mm	0.118 in	Adhesive - One Side	Square
t-Global Technology TG-A486C-150-150-10.0-0	24 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	150 mm	150 mm	0.394 in		Square
t-Global Technology TG-A486C-150-150-0.5-2A	12 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	150 mm	150 mm	0.0197 in	Adhesive - Both Sides	Square
t-Global Technology TG-A486C-150-150-0.5-0	24 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	150 mm	150 mm	0.0197 in		Square
t-Global Technology TG-A486C-150-150-10.0-1A	12 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	150 mm	150 mm	0.394 in	Adhesive - One Side	Square
t-Global Technology TG-A486C-320-320-2.0-0	24 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	320 mm	320 mm	0.079 in		Square
t-Global Technology TG-A486C-150-150-2.0-0	24 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	150 mm	150 mm	0.079 in		Square
t-Global Technology TG-A486C-320-320-10.0-1A	12 Months	Silicone Elastomer	Conductive Pad Sheet	Gray	3.2 W/m-K	320 mm	320 mm	0.394 in	Adhesive - One Side	Square
