M1DXK-6036R

Active

IDC CABLE - MKR60K/MC60M/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M1DXK-6036R

Active

IDC CABLE - MKR60K/MC60M/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.80
		10	$ 25.33
		25	$ 22.96
		50	$ 21.36
		100	$ 19.90
		250	$ 18.19
		500	$ 17.04

Description

General part information

M1DXK Series

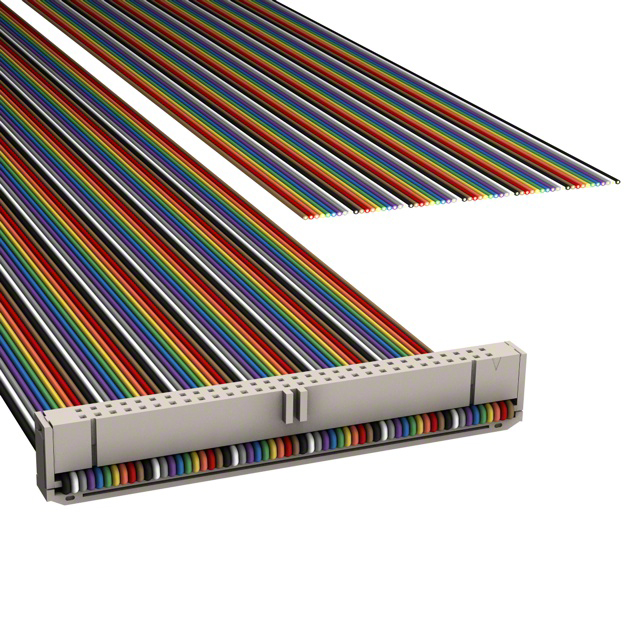

60 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1DXK-6036R	M1DXK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	60	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1DXK Series

IDC CABLE - MKR10K/MC10G/X

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Rows	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Features	Shielding	Color	Number of Positions
3M M1DXK-1036J	0.76 Ám	30 Áin	Gold	Socket to Cable	10	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded
3M M1DXK-2640K	0.76 Ám	30 Áin	Gold	Socket to Cable	26	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3.34 ft	1.02 m	Polarizing Key, Strain Relief	Unshielded	Multiple, Twisted Pair (Flat)
3M M1DXK-2436J	0.76 Ám	30 Áin	Gold	Socket to Cable	24	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded
3M M1DXK-2040K	0.76 Ám	30 Áin	Gold	Socket to Cable	20	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3.34 ft	1.02 m	Polarizing Key, Strain Relief	Unshielded	Multiple, Twisted Pair (Flat)
3M M1DXK-6036J	0.76 Ám	30 Áin	Gold	Socket to Cable	60	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded
3M M1DXK-1636R	0.76 Ám	30 Áin	Gold	Socket to Cable		0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded	Multiple, Ribbon	16
3M M1DXK-1636J	0.76 Ám	30 Áin	Gold	Socket to Cable		0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded		16
3M M1DXK-1436R	0.76 Ám	30 Áin	Gold	Socket to Cable	14	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded	Multiple, Ribbon
3M M1DXK-3036J	0.76 Ám	30 Áin	Gold	Socket to Cable	30	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded
3M M1DXK-1036R	0.76 Ám	30 Áin	Gold	Socket to Cable	10	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	3 ft	914.4 mm	Polarizing Key, Strain Relief	Unshielded	Multiple, Ribbon
