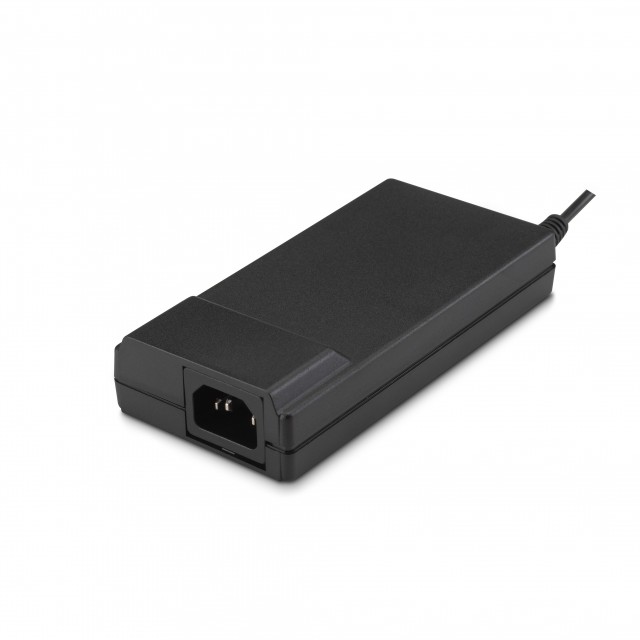

FSP090M-RGA

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 15V 90W

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 15V 90W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC DESKTOP ADAPTER 12V 90W

Part	Voltage - Output	No Load Power Consumption	Approval Agency	Efficiency	Cord Length	Cord Length	Region Utilized	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Input Type	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector	Applications	Form	Current - Output (Max) [Max]	Input Connector
FSP Technology Inc. FSP090M-RHA	12 V	210 mW	CE, cULus, FCC, TUV, VCCI	Level VI	1.5 m	59 in	International	5.71 in	145 mm	28.4 mm	1.12 in	70.2 mm	2.77 in	Cord	60601-1	40 °C	0 °C	90 W	90 VAC	264 VAC	4 Pin	Power DIN	Medical	Desktop (Class I)	7.5 A	IEC 320-C14
FSP Technology Inc. FSP090M-RGA	15 VDC	210 mW	CE, cULus, FCC, TUV, VCCI	Level VI	1.5 m	59 in	International	5.71 in	145 mm	28.4 mm	1.12 in	70.2 mm	2.77 in	Cord	60601-1	40 °C	0 °C	90 W	90 VAC	264 VAC	4 Pin	Power DIN	Medical	Desktop (Class I)	6 A	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.19

General part information

15V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
