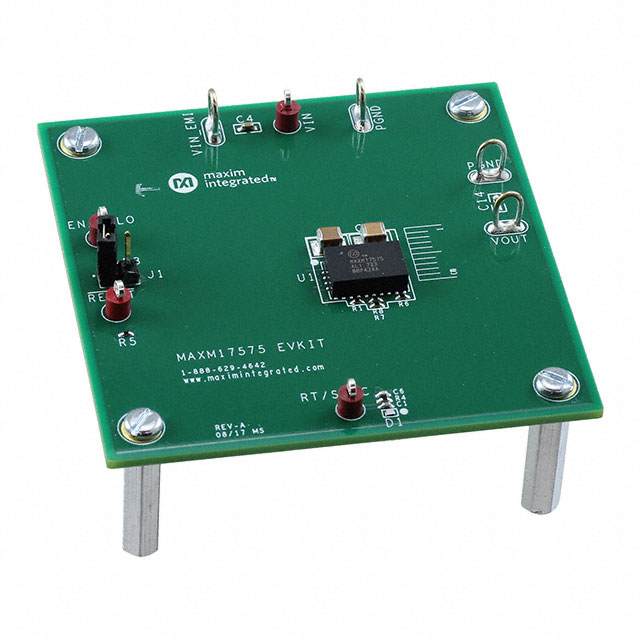

MAXM17575EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EV KIT MAXM17575 1.5A BUCK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17575EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EV KIT MAXM17575 1.5A BUCK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17575EVKIT# | MAXM17575 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 1.5 A | 1.5 A |
| Current - Output (Max) | - | 1.5 A |
| Features | - | UVLO, OTP, OVP |
| Frequency - Switching | 900 kHz | 900 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 28-PowerBLGA Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.11 in |
| Size / Dimension | - | 0.26 " |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 0.39 " |
| Size / Dimension | - | 2.9 mm |
| Size / Dimension | - | 6.5 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10 |
| Supplier Device Package | - | 6.5 |
| Supplier Device Package | - | 28-LGA |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17575 | MAXM17575 |
| Voltage - Input (Max) | - | 60 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 60 V | 60 V |
| Voltage - Input [Min] | 7.5 V | 7.5 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output 1 | - | 0.9 V |
| Voltage - Output 1 | - | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 40.91 | |
MAXM17575 Series
DC DC CONVERTER 0.9-12V
| Part | Features | Voltage - Input (Max) [Max] | Mounting Type | Number of Outputs | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Applications | Type | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Outputs and Type | Outputs and Type | Frequency - Switching | Current - Output | Regulator Topology | Utilized IC / Part | Supplied Contents | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17575ALI#T | OTP, OVP, UVLO | 60 V | Surface Mount | 1 | 10 | 6.5 | 28-LGA | 125 °C | -40 °C | 28-PowerBLGA Module | 0.9 V | 12 V | 4.5 V | 1.5 A | 0.11 in | 0.26 " | 10 mm | 0.39 " | 2.9 mm | 6.5 mm | ITE (Commercial) | Non-Isolated PoL Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17575ALI# | OTP, OVP, UVLO | 60 V | Surface Mount | 1 | 10 | 6.5 | 28-LGA | 125 °C | -40 °C | 28-PowerBLGA Module | 0.9 V | 12 V | 4.5 V | 1.5 A | 0.11 in | 0.26 " | 10 mm | 0.39 " | 2.9 mm | 6.5 mm | ITE (Commercial) | Non-Isolated PoL Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17575EVKIT# | 5 V | 60 V | 7.5 V | DC/DC, Step Down | Non-Isolated | 1 | 900 kHz | 1.5 A | Buck | MAXM17575 | Board(s) | Fully Populated |
Description
General part information
MAXM17575 Series
MAXM17575 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
