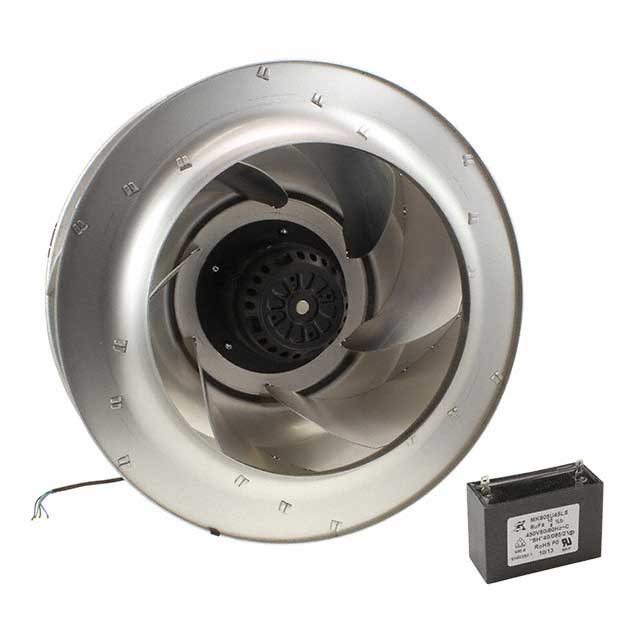

UF400AAA23-H1C4A

Active

Mechatronics Fan Group

IMPELLER 400X162MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Fan Group

IMPELLER 400X162MM 230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	UF400AAA23-H1C4A

Air Flow	1900 CFM
Air Flow	53.2 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.26 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum
Material - Frame	Aluminum
Noise	73 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	287 W
RPM	1250 RPM
Size / Dimension [diameter]	400 mm
Static Pressure	5.38 in H2O
Static Pressure	1340.2 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	5.4 kg
Weight	12 lbs
Width [y]	162.4 mm

IMPELLER 400X162MM 230VAC

Part	Size / Dimension [diameter]	Approval Agency	Power (Watts)	RPM	Material - Frame	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Bearing Type	Air Flow	Air Flow	Voltage - Rated	Width [y]	Termination	Features	Noise	Static Pressure	Static Pressure	Weight	Weight	Fan Type
Mechatronics Fan Group UF400AAA23-H1C4A	400 mm	CE, cUL, TUV, UL	287 W	1250 RPM	Aluminum	Aluminum	-20 °C	50 °C	-20 C	50 °C	1.26 A	Ball	1900 CFM	53.2 m³/min	230 VAC	162.4 mm	4 Wire Leads	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	73 dB(A)	5.38 in H2O	1340.2 Pa	5.4 kg	12 lbs	Motorized Impellers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 400mm Dia Ball 1900.0 CFM (53.20m³/min) 4 Wire Leads
