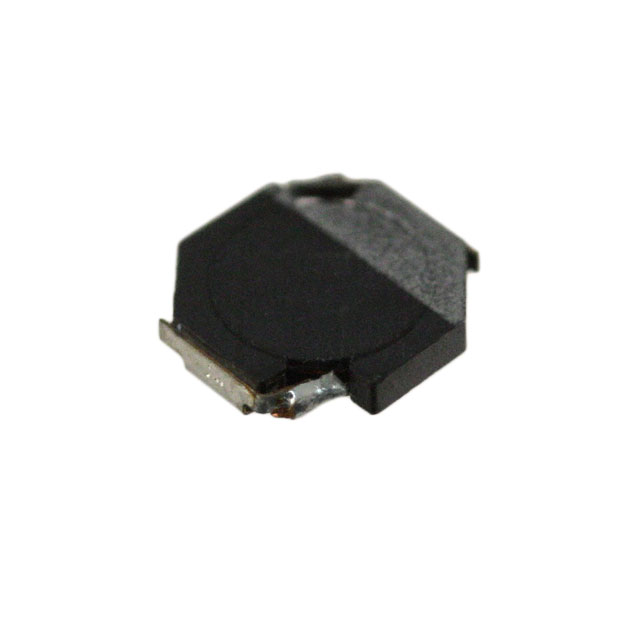

VLF4012ST-1R0N1R9
ObsoleteTDK Corporation
FIXED IND 1UH 1.9A 54 MOHM SMD
VLF4012ST-1R0N1R9
ObsoleteTDK Corporation
FIXED IND 1UH 1.9A 54 MOHM SMD
Description
General part information
VLF4012ST-1R0N1R9
1 µH Shielded Drum Core, Wirewound Inductor 1.9 A 54mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLF4012ST-1R0N1R9 |
|---|---|
| Current - Saturation (Isat) | 2.7 A |
| Current Rating | 1.9 A |
| DC Resistance (DCR) (Max) | 54 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.142 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
