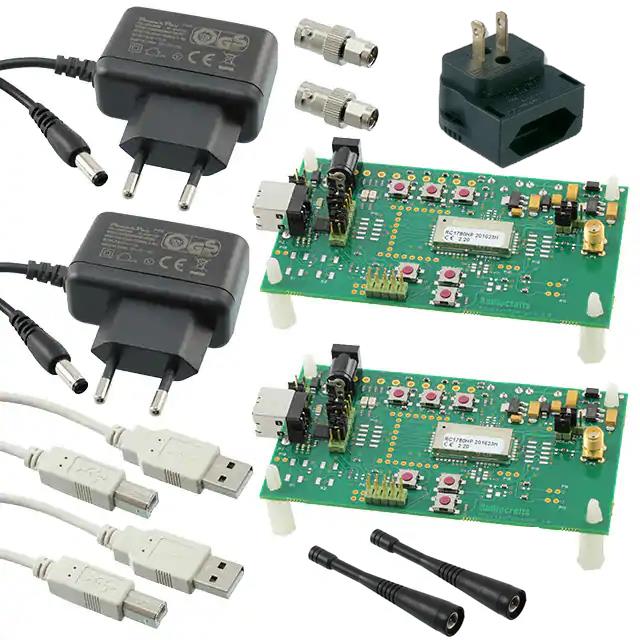

RC1180HP-MBUS3 DEVELOPMENT KIT

Search across all available documentation for this part.

Active

Radiocrafts AS

RC1180HP-MBUS3 DEVELOPMENT KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RC1180HP-MBUS3-DK	RC1180 Series

	-	-
Antenna Type	-	Antenna Not Included, Castellation
Applications	-	General Purpose
Current - Receiving	-	24 - 27 mA
Current - Transmitting	-	37 - 120 mA
Data Rate	-	100 Kbps
For Use With/Related Products	RC1180HP	RC1180HP
Frequency	869.525 MHz	868 - 869.525 MHz
Frequency	-	870 MHz
Frequency	-	868 MHz
Function	-	Transceiver, ZigBee™
Interface	-	USB
Modulation	-	GFSK
Modulation or Protocol	-	802.15.4 Zigbee™
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	10 - 27 dBm
Protocol	-	Wireless M-Bus, RC232
RF Family/Standard	-	General ISM < 1GHz
Sensitivity	-	-110 - -106 dBm
Serial Interfaces	-	UART
Supplied Contents	Power Supply, Cable(s), Board(s), Accessories	Power Supply, Cable(s), Board(s), Accessories
Utilized IC / Part	-	CC1110
Voltage - Supply	-	3.6 V
Voltage - Supply	-	2 V

KNX 868 MHZ USB

Part	Function	Interface	Modulation or Protocol	Frequency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Max]	Frequency [Min]	Serial Interfaces	Antenna Type	Sensitivity	RF Family/Standard	Package / Case	Current - Receiving	Mounting Type	Current - Transmitting	Data Rate	Protocol	Power - Output	Modulation	Utilized IC / Part	Supplied Contents	For Use With/Related Products
Radiocrafts AS RC1180-KNX2-USB	Transceiver, ZigBee™	USB	802.15.4 Zigbee™	868 MHz	General Purpose
Radiocrafts AS RC1180-MBUS3-USB
Radiocrafts AS RC1180HP-MBUS3						85 °C	-40 °C	3.6 V	2 V	870 MHz	868 MHz	UART	Antenna Not Included	-110 dBm	General ISM < 1GHz	Module	27 mA	Surface Mount	120 mA	100 Kbps	Wireless M-Bus	27 dBm
Radiocrafts AS RC1180-RC232						85 °C	-40 °C	3.6 V	2 V	870 MHz	868 MHz	UART	Antenna Not Included, Castellation	-110 dBm	General ISM < 1GHz	Module	24 mA	Surface Mount	37 mA	100 Kbps	RC232	10 dBm	GFSK	CC1110
Radiocrafts AS RC1180HP-MBUS3-DK				869.525 MHz																					Accessories, Board(s), Cable(s), Power Supply	RC1180HP
Radiocrafts AS RC1180-RC232-USB	Transceiver, ZigBee™	USB	802.15.4 Zigbee™	868 MHz	General Purpose
Radiocrafts AS RC1180-MPC1				868 MHz		85 °C	-40 °C	3.6 V	2 V			UART	Antenna Not Included, Castellation	-106 dBm	General ISM < 1GHz	Module	24 mA	Surface Mount	37 mA	100 Kbps	Wireless M-Bus	10 dBm		CC1110
