21671.6

Active

Pflitsch

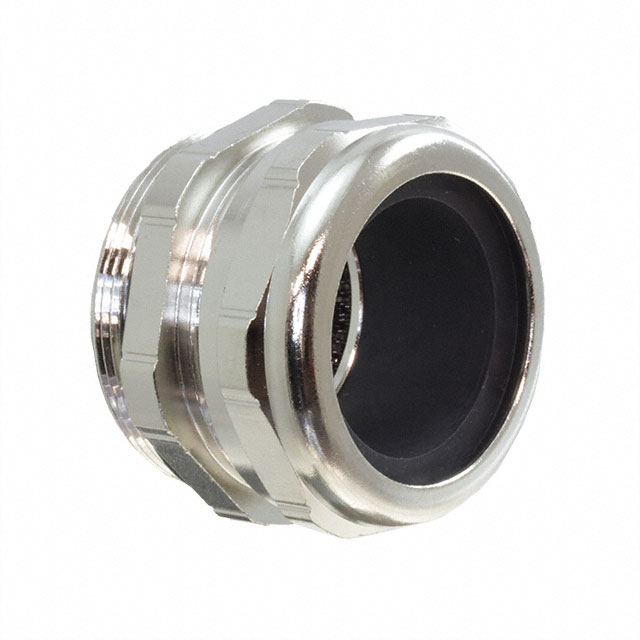

CABLE GLND 26.92-32MM PG36 BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLND 26.92-32MM PG36 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	21671.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	1.06 in
Outside Cable Diameter (Min) [Min] [diameter]	26.92 mm
Panel Hole Size [diameter]	1.85 in
Panel Hole Size [diameter]	47 mm
Thread Length	0.35 "
Thread Length	8.89 mm
Thread Size	PG36
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Thread Length	Thread Length	Type	Includes	Ingress Protection
Pflitsch 21671.6	32 mm	1.26 in	Brass Nickel Plated	1.85 in	47 mm	1.06 in	26.92 mm	Silver	-40 °C	300 °C	PG36	0.35 "	8.89 mm	Cable Gland	Sealing Ring	IP68 - Dust Tight Waterproof; NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG36 Silver
