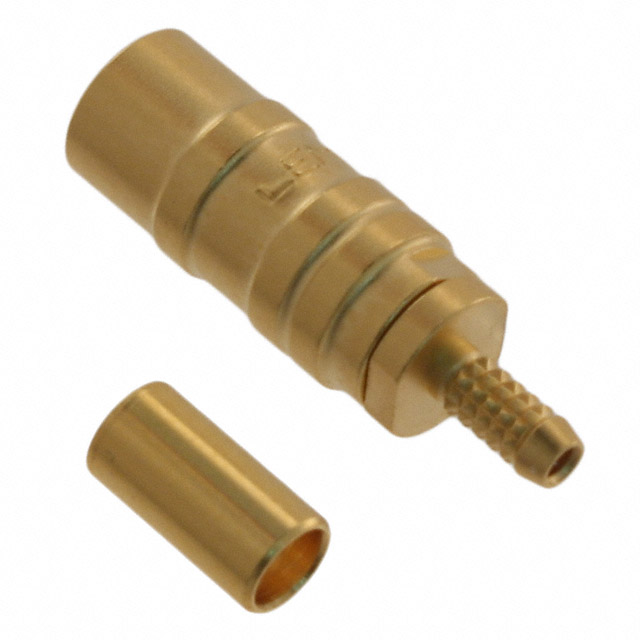

PCS.01.250.DLLE24

Active

LEMO

CONN MINI COAX RCPT STR 50 OHM

Search across all available documentation for this part.

Active

LEMO

CONN MINI COAX RCPT STR 50 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN MINI COAX RCPT STR 50 OHM

Part	Impedance	Fastening Type	Contact Termination	Mounting Type	Cable Group	Number of Ports	Body Finish	Ingress Protection	Housing Color	Center Contact Material	Mating Cycles	Center Contact Plating	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Shield Termination	Body Material	Connector Style
LEMO PCS.01.250.DLLE24	50 Ohms	Push-Pull	Solder	Free Hanging (In-Line)	196A, RG-178B	1	Gold	IP50	Gold	Bronze	1000	Gold	Female Socket, Receptacle	300 VDC	230 °C	-55 °C	Polyetheretherketone (PEEK)	Crimp	Brass	Miniature Coaxial
LEMO PCS.01.250.DLLE31	50 Ohms	Push-Pull	Solder	Free Hanging (In-Line)	179B, 187A, 188A, 316, RG-174	1	Gold	IP50	Gold	Bronze	1000	Gold	Female Socket, Receptacle	300 VDC	230 °C	-55 °C	Polyetheretherketone (PEEK)	Crimp	Brass	Miniature Coaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder
