2-130094-1

Active

TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG M5 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG M5 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	2-130094-1

Color	Blue
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter [Max] [diameter]	0.17 ", 4.32 mm
Insulation Diameter [Min] [diameter]	2.92 mm, 0.115 in
Length - Overall [x]	21.94 mm
Length - Overall [x]	0.864 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	M5 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [x]	0.343 in
Width - Outer Edges [x]	8.71 mm

CONN RING CIRC 14-16AWG M5 CRIMP

Part	Termination	Contact Material	Color	Mounting Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Overall [x]	Length - Overall [x]	Insulation	Terminal Type	Features	Thickness	Thickness	Contact Finish	Stud/Tab Size	Material - Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]
TE Connectivity AMP Connectors 2-130094-1	Crimp	Copper	Blue	Free Hanging (In-Line)	0.115 in, 2.92 mm	0.17 ", 4.32 mm	21.94 mm	0.864 in	Insulated	Circular	Serrated Termination	0.031 in	0.79 mm	Tin	M5 Stud	Nylon, Polyamide (PA)	0.343 in	8.71 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

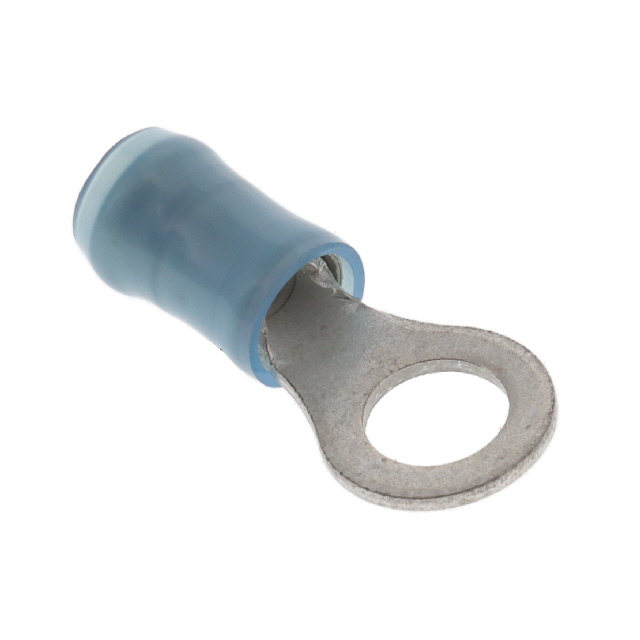

Ring Terminal Connector M5 Stud Circular 14-16 AWG Crimp
