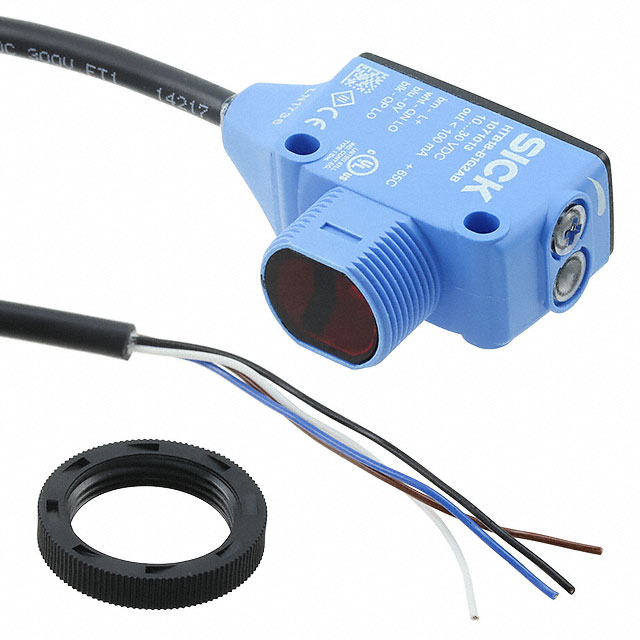

Specification	1071013

Adjustment Type	Adjustable, Potentiometer
Connection Method	Cable
Ingress Protection	IP69K, IP67
Light Source	Red LED
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Output Configuration	NPN, PNP - Light-ON
Response Time	500 µs
Sensing Distance Maximum	5.906 "
Sensing Distance Minimum	0.197 "
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

HTB18 Series

Part	Light Source Wavelength (Red)	Light Source	Response Time	Connection Method	Ingress Protection	Sensing Distance Minimum	Sensing Distance Maximum	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Output Configuration	Sensing Method	Adjustment Type	Cable Length
SICK, Inc. HTB18-B4A2AAD06	631 nm	Red	500 µs	Connector M12	IP67	0.197 "	5.906 "	10 VDC	30 VDC	65 °C	-40 °C	NPN PNP	Proximity
SICK, Inc. 1085437	631 nm	Red	500 µs	Connector M12	IP67	0.197 "	1.969 "	10 VDC	30 VDC	65 °C	-40 °C	NPN PNP	Proximity
SICK, Inc. 1074760	631 nm	Red	500 µs	Connector M12	IP67	0.197 "	3.937 "	10 VDC	30 VDC	65 °C	-40 °C	NPN	Proximity
SICK, Inc. 1078528	631 nm	Red	500 µs	Connector M8	IP67	0.197 "	11.811 "	10 VDC	30 VDC	65 °C	-40 °C	NPN PNP	Proximity	Adjustable Potentiometer
SICK, Inc. 1080551	631 nm	Red	500 µs	Cable with Connector	IP67	0.197 "	5.906 "	10 VDC	30 VDC	65 °C	-40 °C	PNP	Proximity	Adjustable Potentiometer	5.906 in
SICK, Inc. 1079042	631 nm	Red	500 µs	Cable with Connector	IP67	0.197 "	11.811 "	21.6 VDC	250 VAC	65 °C	-40 °C		Proximity	Adjustable Potentiometer	5.906 in
SICK, Inc. 1076841	631 nm	Red	500 µs	Connector M12	IP67	0.197 "	5.906 "	10 VDC	30 VDC	65 °C	-40 °C	PNP	Proximity
SICK, Inc. 1079118	631 nm	Red	500 µs	Cable with Connector	IP67	0.197 "	3.937 "	10 VDC	30 VDC	65 °C	-40 °C	NPN PNP	Proximity	Adjustable Potentiometer	5.906 in
SICK, Inc. 1080813	631 nm	Red	500 µs	Connector M8	IP67	0.197 "	11.811 "	10 VDC	30 VDC	65 °C	-40 °C	PNP	Proximity	Adjustable Potentiometer
SICK, Inc. 1082348	631 nm	Red	500 µs	Cable with Connector	IP67	0.197 "	11.811 "	10 VDC	30 VDC	65 °C	-40 °C	NPN PNP	Proximity	Adjustable Potentiometer	11.81 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1071013 | Datasheet
