CLS-RR11A12250R

Active

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLS-RR11A12250R

Active

Lumex Opto/Components Inc.

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLS-RR11 Series

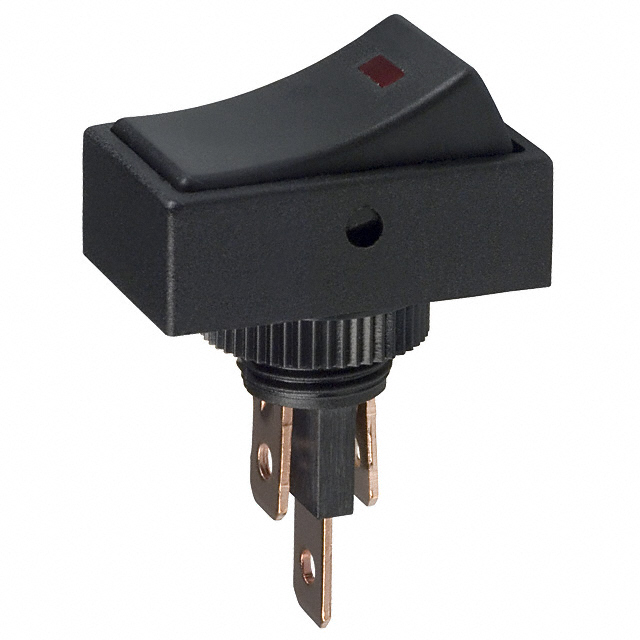

Rocker Switch SPST 25A (DC) Panel Mount, Threaded Body with Nut

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLS-RR11A12250R	CLS-RR11 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated, Concave (Standard V) - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	25 A	10 - 25 A
Illumination Type, Color	Red, LED	Red, LED, Blue, Yellow, Green
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Snap-In, Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions	-	27.8 - 28.7 mm
Panel Cutout Dimensions	-	11.6 - 13.8 mm
Panel Cutout Dimensions [diameter]	12 mm	12 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.187" (4.7mm), Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	12 V	12 V

CLS-RR11 Series

SWITCH ROCKER SPST 10A 125V

Part	Termination Style	Actuator Marking	Circuit	Illumination Type, Color	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Actuator Type	Color - Actuator/Cap	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
Lumex Opto/Components Inc. CLS-RR11A125500R	Quick Connect - 0.187" (4.7mm)	No Marking	SPST	LED, Red	10 A	Panel Mount, Snap-In	125 V	Concave (Curved) - Illuminated	Black	On-Off
Lumex Opto/Components Inc. CLS-RR11A12252B	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	Blue, LED	20 A	Panel Mount, Snap-In		Concave (Standard V) - Illuminated	Black	On-Off	28.7 mm	11.6 mm	12 V
Lumex Opto/Components Inc. CLS-RR11A12252Y	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	LED, Yellow	20 A	Panel Mount, Snap-In		Concave (Standard V) - Illuminated	Black	On-Off	28.7 mm	11.6 mm	12 V
Lumex Opto/Components Inc. CLS-RR11A12252R	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	LED, Red	20 A	Panel Mount, Snap-In		Concave (Standard V) - Illuminated	Black	On-Off	28.7 mm	11.6 mm	12 V
Lumex Opto/Components Inc. CLS-RR11A120250Y	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	LED, Yellow	16 A	Panel Mount, Snap-In	125 V	Concave (Curved) - Illuminated	Black	On-Off	27.8 mm	13.8 mm
Lumex Opto/Components Inc. CLS-RR11A125500B	Quick Connect - 0.187" (4.7mm)	No Marking	SPST	Blue, LED	10 A	Panel Mount, Snap-In	125 V	Concave (Curved) - Illuminated	Black	On-Off
Lumex Opto/Components Inc. CLS-RR11A12252G	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	Green, LED	20 A	Panel Mount, Snap-In		Concave (Standard V) - Illuminated	Black	On-Off	28.7 mm	11.6 mm	12 V
Lumex Opto/Components Inc. CLS-RR11A12250G	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	Green, LED	25 A	Panel Mount, Threaded Body with Nut		Concave (Curved) - Illuminated	Black	On-Off			12 V	12 mm
Lumex Opto/Components Inc. CLS-RR11A12251R	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	LED, Red	25 A	Panel Mount, Snap-In		Concave (Curved) - Illuminated	Black	On-Off	28.7 mm	11.6 mm	12 V
Lumex Opto/Components Inc. CLS-RR11A120250B	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	Blue, LED	16 A	Panel Mount, Snap-In	125 V	Concave (Curved) - Illuminated	Black	On-Off	27.8 mm	13.8 mm
