Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1108757-1 | 1108757 Series |
|---|---|---|
| Contact Finish | Silver | Silver |
| Contact Finish Thickness | 2 µm | 2 µm |
| Contact Finish Thickness | 78.7 µin | 78.7 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Machined | Machined |
| Wire Gauge | 16 AWG | 10 - 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1108757 Series

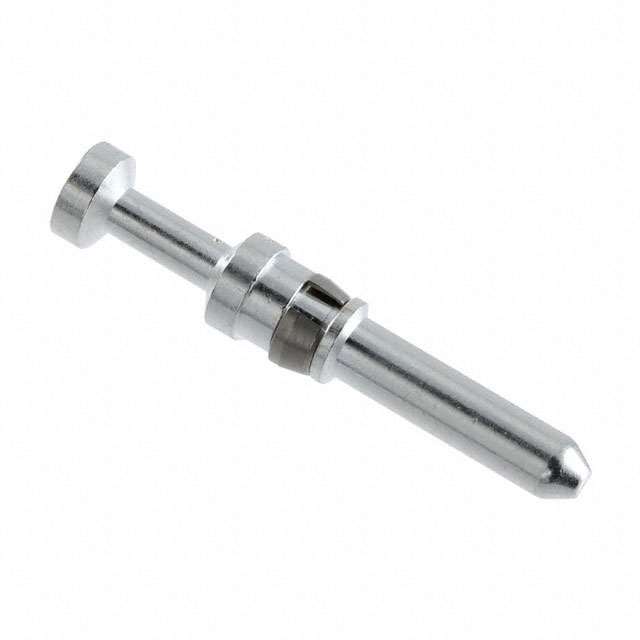

CONTACT H.D. CRIMP PIN 10AWG
| Part | Contact Finish Thickness | Contact Finish Thickness | Type | Contact Termination | Pin or Socket | Wire Gauge | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1108757-1 | 2 µm | 78.7 µin | Machined | Crimp | Pin | 10 AWG | Silver |
TE Connectivity AMP Connectors 1-1108757-1 | 2 µm | 78.7 µin | Machined | Crimp | Pin | 16 AWG | Silver |
Description
General part information
1108757 Series
Contact Crimp Pin 15.5 AWG Silver
