ASP-122953-01

Active

Samtec Inc.

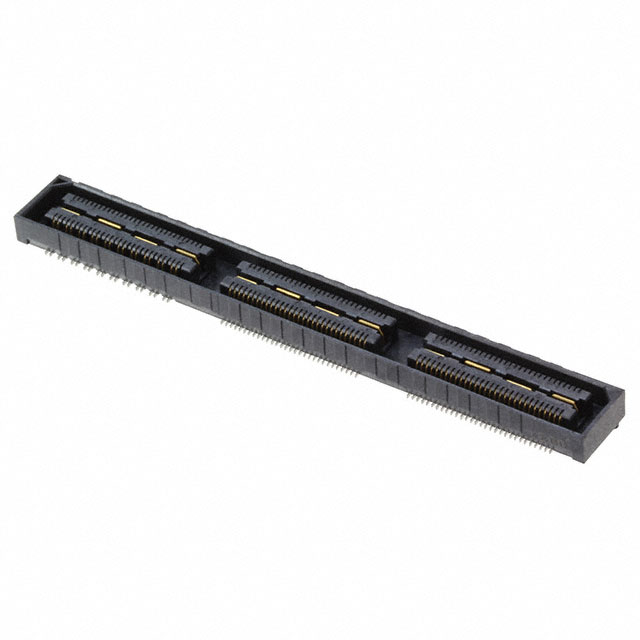

CONNECTOR, RCPT, 160POS, 2ROW, 0.5MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONNECTOR, RCPT, 160POS, 2ROW, 0.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-122953-01

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

CONNECTOR, RCPT, 160POS, 2ROW, 0.5MM

Part	Connector Type	Number of Positions	Number of Rows	Contact Finish	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness
Samtec Inc. ASP-122953-01	Center Strip Contacts, Receptacle	160	2	Gold	3.25 mm	0.128 in	Surface Mount	0.5 mm	0.02 in	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
