ActiveTE Connectivity Corcom Filters

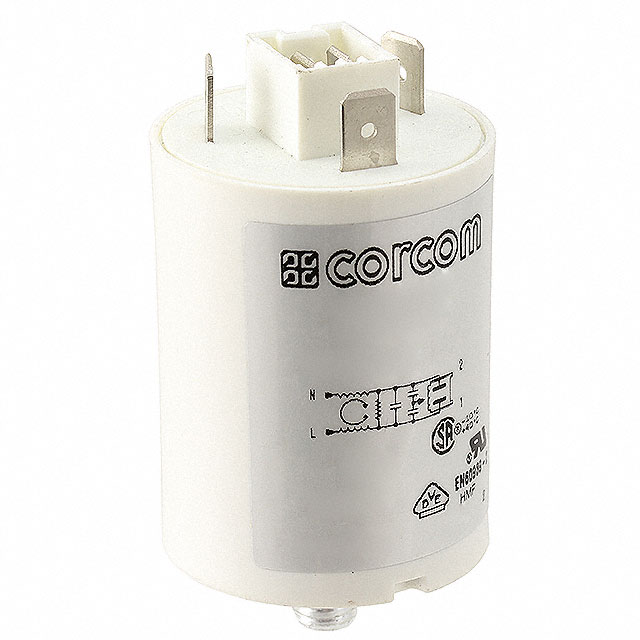

LINE FILTER 250VAC 16A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
4-1609090-3
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VAC 16A CHASSIS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-1609090-3 | 1609090 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | VDE, CSA, UR | VDE, CSA, UR |
| Configuration | Single Stage | Single Stage |
| Current | 16 A | 16 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | 2 mH | 1.2 - 500 mH |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Termination Style | Threaded Post (M8), Quick Connect | Threaded Post (M8), Quick Connect |
| Voltage - Rated AC | 250 V | 250 V |
1609090 Series
LINE FILTER 250VAC 16A CHASSIS
| Part | Filter Type | Approval Agency | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Current | Frequency - Operating [Max] | Frequency - Operating [Min] | Mounting Type | Termination Style | Inductance | Configuration | Voltage - Rated AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 4-1609090-2 | Single Phase | CSA, UR, VDE | General Purpose | -10 °C | 40 °C | 16 A | 60 Hz | 50 Hz | Chassis Mount | Quick Connect, Threaded Post (M8) | 1.2 mH | Single Stage | 250 V |
TE Connectivity Corcom Filters 3-1609090-9 | Single Phase | CSA, UR, VDE | General Purpose | -10 °C | 40 °C | 16 A | 60 Hz | 50 Hz | Chassis Mount | Quick Connect, Threaded Post (M8) | 1.2 mH | Single Stage | 250 V |
TE Connectivity Corcom Filters 4-1609090-3 | Single Phase | CSA, UR, VDE | General Purpose | -10 °C | 40 °C | 16 A | 60 Hz | 50 Hz | Chassis Mount | Quick Connect, Threaded Post (M8) | 2 mH | Single Stage | 250 V |
TE Connectivity Corcom Filters 3-1609090-8 | Single Phase | CSA, UR, VDE | General Purpose | -10 °C | 40 °C | 16 A | 60 Hz | 50 Hz | Chassis Mount | Quick Connect, Threaded Post (M8) | 500 µH | Single Stage | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 216 | $ 7.29 | |
Description
General part information
1609090 Series
Single Phase EMC/EMI Line Filter 16 A 250V 50/60Hz Single Stage Quick Connect, Threaded Post (M8)
