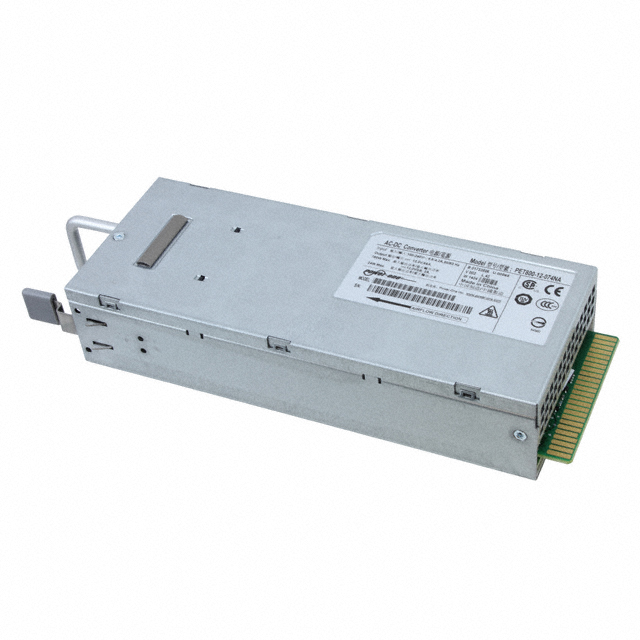

PET800-12-074NA

Active

Bel Power Solutions

AC/DC CONVERTER 12V 800W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 800W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PET800-12-074NA	PET800 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CB	CE, NEMKO, CB
Current - Output (Max)	-	65 A
Current - Output 1	65 A	65 A
Efficiency	91 %	91 - 94 %
Features	Hot Swappable, Standby Output, I2C Interface, PFC, Load Sharing, PMBus™, Universal Input	Hot Swappable, Standby Output, I2C Interface, PFC, Load Sharing, PMBus™, Universal Input
Mounting Type	Rack Mount	Rack Mount
Number of Outputs	1	1
Power (Watts)	800 W	800 W
Size / Dimension [x]	7.28 in	7.28 in
Size / Dimension [x]	185 mm	185 mm
Size / Dimension [y]	2.89 in	2.89 in
Size / Dimension [y]	73.5 mm	73.5 mm
Size / Dimension [z]	39 mm	39 mm
Size / Dimension [z]	1.54 "	1.54 "
Type	Front End	Front End
Voltage - Input (Max)	-	-72 V
Voltage - Input (Min)	-	-40 V
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	-	1.414 kV
Voltage - Output 1	12 V	12 V

DC/DC CONVERTER 12V 800W

Part	Voltage - Input (Min) [Min]	Mounting Type	Type	Voltage - Output 1	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Approval Agency	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Isolation	Applications	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Features
Bel Power Solutions PET800-12-074ND	-40 V	Rack Mount	Front End	12 V	65 A	7.28 in	2.89 in	73.5 mm	39 mm	185 mm	1.54 "	800 W	CE, NEMKO	94 %	-72 V	1	1.414 kV	ITE (Commercial)
Bel Power Solutions PET800-12-074NA		Rack Mount	Front End	12 V		7.28 in	2.89 in	73.5 mm	39 mm	185 mm	1.54 "	800 W	CB, CE	91 %		1		ITE (Commercial)	65 A	90 VAC	264 VAC	Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input
Bel Power Solutions PET800-12-074RA		Rack Mount	Front End	12 V		7.28 in	2.89 in	73.5 mm	39 mm	185 mm	1.54 "	800 W	CE	93 %		1		ITE (Commercial)	65 A	90 VAC	264 VAC	Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
