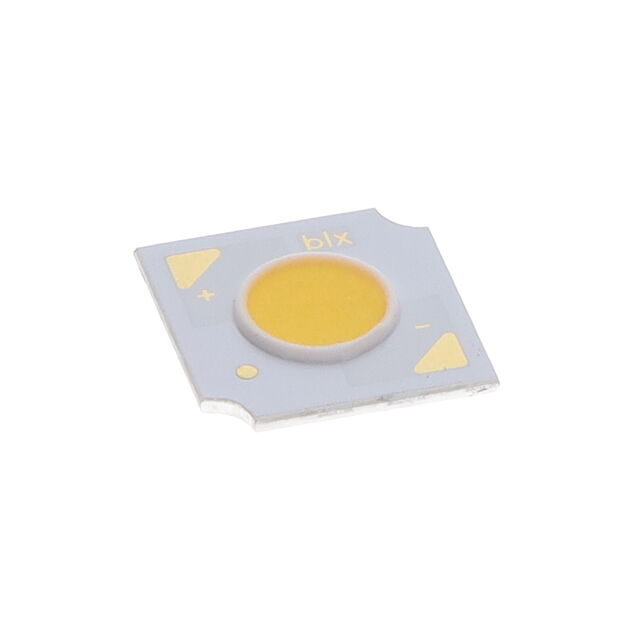

BXRH-40G1000-G-83

Active

BRIDGELUX

LED COB V6 HD NEUT WHT SQU 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRH-40G1000-G-83

Active

BRIDGELUX

LED COB V6 HD NEUT WHT SQU 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.41
		10	$ 2.28
		100	$ 1.75
		500	$ 1.58
		1000	$ 1.36
		2000	$ 1.29
		5000	$ 1.26

Description

General part information

BXRH-40 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V6 HD LED Array White, Neutral Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRH-40G1000-G-83	BXRH-40 Series

CCT (K)	4000 K	4000 K
Color	Neutral, White	Neutral, White
Configuration	Square	Square
CRI (Color Rendering Index)	90	80 - 98
Current - Max [Max]	1.2 A	1.05 - 960 mA
Current - Test	-	1 - 750 mA
Height [z]	1.63 mm	1.63 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	6.6 mm	3.8 - 15.1 mm
Lumens/Watt @ Current - Test	120 lm/W	88 - 146 lm/W
Luminous Flux @ Current/Temperature	1543 lm	307 - 9699 lm
Size / Dimension	-	12.5 - 19 mm
Size / Dimension	-	12.5 - 19 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	112 - 120 °
Voltage - Forward (Vf) (Typ)	18.3 V	17.6 - 36.6 V

BXRH-40 Series

LED COB V3 NEUT WHT SQUARE 4000K

Part	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle	CCT (K)	Current - Max [Max]	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Configuration	Current - Test	Lens Type	Height [z]	Color	Type	Temperature - Test
BRIDGELUX BXRH-40H0300-A-83	3.8 mm	35.2 V	109 lm/W	120 °	4000 K	180 mA	97	12.5 mm	12.5 mm	307 lm	Square	80 mA	Flat	1.63 mm	Neutral, White	Chip On Board (COB)
BRIDGELUX BXRH-40G1000-B-73	7 mm	35.4 V	99 lm/W	120 °	4000 K	480 mA	90			1229 lm	Square	350 mA	Flat	1.63 mm	Neutral, White	Chip On Board (COB)	85 °C
BRIDGELUX BXRH-40G0600-A-83	4.8 mm	36.6 V	116 lm/W	120 °	4000 K	300 mA	90	12.5 mm	12.5 mm	745 lm	Square	175 mA	Flat	1.63 mm	Neutral, White	Chip On Board (COB)
BRIDGELUX BXRH-40E3000-D-23	9.5 mm	36.6 V	106 lm/W	112 °	4000 K	1.4 A	80			3880 lm	Square	1 A	Flat	1.7 mm	Neutral, White	Chip On Board (COB)
BRIDGELUX BXRH-40H3000-D-83	8.8 mm	36.6 V	110 lm/W	120 °	4000 K	1.2 A	97	19 mm	19 mm	2819 lm	Square		Flat	1.63 mm	Neutral, White	Chip On Board (COB)
BRIDGELUX BXRH-40H0600-B-83	4.8 mm	18.3 V	105 lm/W	120 °	4000 K	600 mA	97	12.5 mm	12.5 mm	674 lm	Square	350 mA	Flat	1.63 mm	Neutral, White	Chip On Board (COB)
BRIDGELUX BXRH-40S0601-A-73	4.5 mm	36.4 V	102 lm/W	120 °	4000 K	240 mA	98	12.5 mm	12.5 mm	650 lm	Square	175 mA	Flat	1.63 mm	Neutral, White	Chip On Board (COB)
BRIDGELUX BXRH-40E1000-B-73	7 mm	35.4 V	117 lm/W	120 °	4000 K	480 mA	80			1452 lm	Square	350 mA	Flat	1.63 mm	Neutral, White	Chip On Board (COB)	85 °C
BRIDGELUX BXRH-40G3000-D-83	8.8 mm	36.6 V	122 lm/W	120 °	4000 K	1.2 A	90	19 mm	19 mm	3118 lm	Square		Flat	1.63 mm	Neutral, White	Chip On Board (COB)
BRIDGELUX BXRH-40S1001-B-73	6.6 mm	36.4 V	105 lm/W	120 °	4000 K	480 mA	98			1338 lm	Square	350 mA	Flat	1.63 mm	Neutral, White	Chip On Board (COB)
