ADF6-20-03.5-S-4-2-A-TR
ObsoleteSamtec Inc.
0.635 MM ACCELERATE HD HIGH-DENS
ADF6-20-03.5-S-4-2-A-TR
ObsoleteSamtec Inc.
0.635 MM ACCELERATE HD HIGH-DENS
Description
General part information
ADF6-20-03.5-S-4-2-A-TR

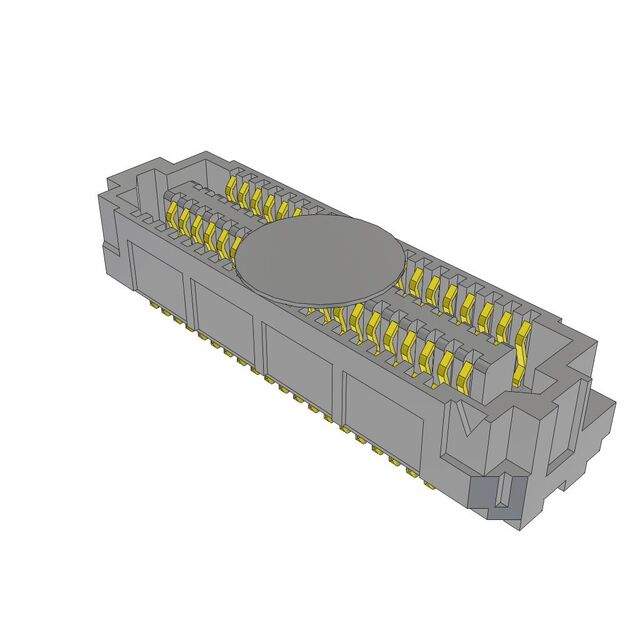

80 Position Connector High Density Array, Female Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | ADF6-20-03.5-S-4-2-A-TR |
|---|---|
| Connector Type | High Density Array, FEMALE |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Guide |
| Height Above Board | 0.147 in |
| Mated Stacking Height Options | 5mm, 10mm, 12mm, 7mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 4 |
| Pitch | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
